13/06/2024

Protezione bordi foro PA6 2.1-3.3 G51NC
UNS 251-21309 | G51NC-PA6-NA Dettagli

  • Elevata flessibilità
  • Applicato facilmente senza adesivi
  • Eccellente resistenza alle alte temperature
  • Garantisce protezione da possibili sfregamenti sulla lamiera

Richiedi ora la tua offerta individuale

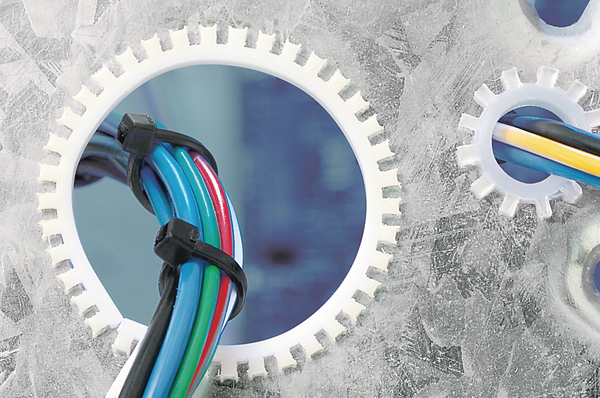

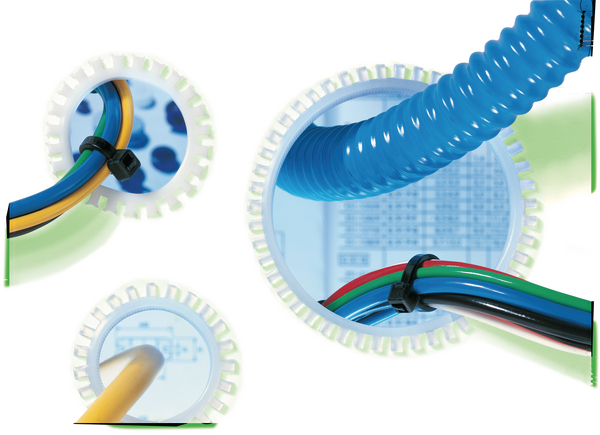

Applicazione I profilati passacavo sono utilizzati per proteggere cavi e fili che passano attraverso fori e aperture di pannelli e lamiere.
Colour Natural (NA)
Material Polyamide 6 (PA6)

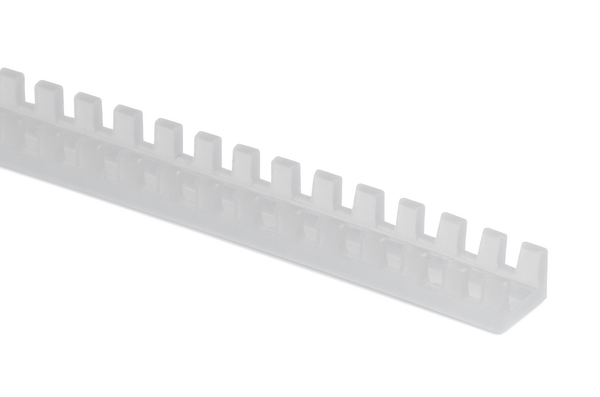

PART DESCRIPTION G51NC-PA6-NA
Pack Content 25m
Package Content packed in reel
Product Family Flexiform G51N PA6 grommet strip
Product Group Edge protection for cut-out sections
Type G51NC
Variant Open

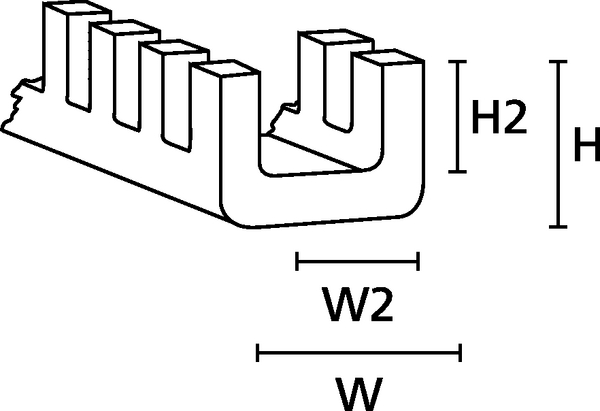

Height (H) 4.3mm
Height (H2) 2.7mm
Panel Thickness 0.08 - 0.13"
Panel Thickness max. 2.1 - 3.3mm
Panel Thickness max. (imperial) 0.13"
Panel Thickness min. (imperial) 0.08"
Width (W) 5.7mm
Width (W2) 0.138"
Width (W2) 3.5mm
for Panel Thickness min - max 2.1 - 3.3 mm
for Panel Thickness min - max 0.1 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Nato number 5325-14-417-3160, 5325-14-590-9987
Operating Temperature -60 °C to +95 °C
ROHS compliant Yes
Specifications
Specifications NASM21266
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
US Gov. Designation MS21266-3N
UV-Stabilised No
GTIN-13 / EAN 5022660006845
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00266
Packaging 1 - Weight (kg) 0.361978kg
Packaging 1 - Width (m) 0.195m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 225.276kg
Packaging 4 - Width (m) 0.8m
Reel Length 9.7ft
UNSPSC Key 39131603
