PST-H
UNS 342-20950 | PST-H-9.5/4.8-POA-BK Dettagli

Richiedi ora la tua offerta individuale

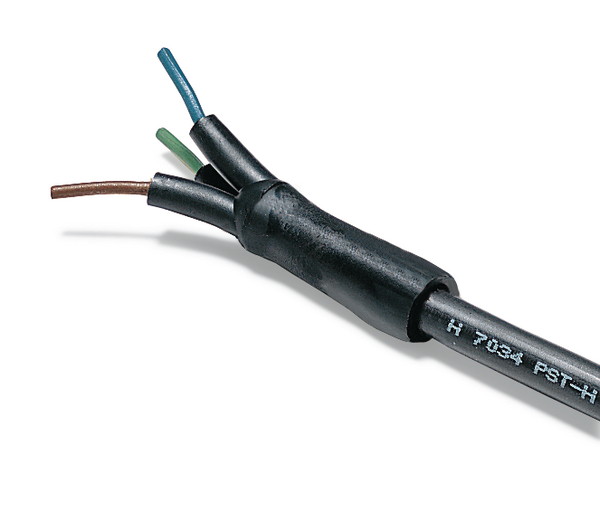

Applicazione PST-H è utilizzato per la protezione nel lungo periodo dei cablaggi del settore militare ed aeronautico.
Application Tool H6100
Behaviour At Low Temperature not cracking
Colour Black (BK)
Elongation At Heat Aging 350%
Heat Shock Elongation 350%
Heat Shock Tensile Strength 14MPa
Heat Shock Test 4h/208°C
Material Elastomer, cross-linked (POA)
Minimum Tensile Strength At Heat Aging 14MPa
PART DESCRIPTION PST-H-9.5/4.8-POA-BK
Pack Content 150m
Package Content packed in metre
Product Family PST-H
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Shrink Ratio 2:1
Size 3/8"
Type PST-H-9.5/4.8
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d max. 4.8mm
Supplied ∅ D min. 9.5mm
Wall (WT) 1.00mm
Designation as per VG-Norm VG 95343 T05 D 004 A
Dielectric Strength 20kV/mm
Dielectric Strength test method IEC 684 P2
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-151-4505
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Specifications DEF STAN 59-97/3, LEA, NF F 00-608, VG 95343-5:2016-10
Volume Resistance 10¹² Ω cm
GTIN-13 / EAN 4031026150185
Packaging 1 - Height (m) 0.395m
Packaging 1 - Length (m) 0.245m
Packaging 1 - Qty 150
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.03823
Packaging 1 - Weight (kg) 3.602kg
Packaging 1 - Width (m) 0.395m
Packaging 3 - Height (m) 0.4m
Packaging 3 - Length (m) 0.25m
Packaging 3 - Qty 150
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.04
Packaging 3 - Weight (kg) 21.332kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3600
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 532.968kg
Packaging 4 - Width (m) 0.8m
Reel Length 100.0m
UNSPSC Key 39121723
