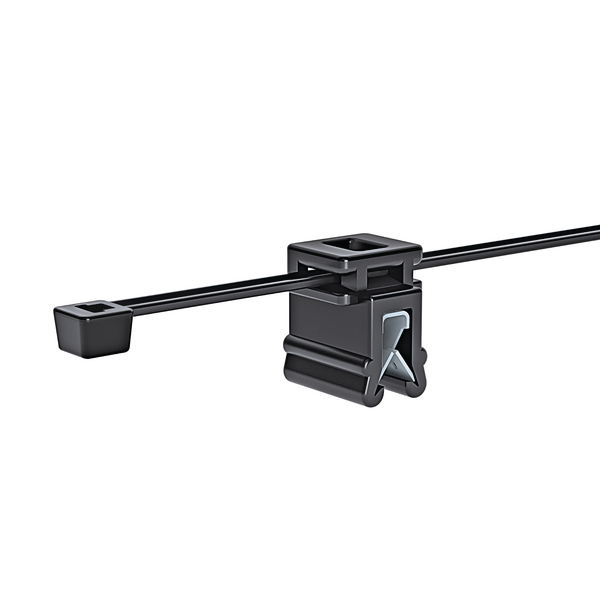

Fascetta di fissaggio per bordi, a dentatura interna, Ø4.0-33.0mm, nero, 500Pz.
UNS 150-76090 | T30REC4A-PA66HS/PA66HIRHS-BK Dettagli

  • Fascetta 2-piece preassemblata con EdgeClip
  • La testa della fascetta può essere riposizionata dopo la legatura
  • EC9, EC10, EC21 ed EC22 sono per diametri di legatura minimi di 1 mm
  • Per bordi lamiera da 1 a 3 mm di spessore

Richiedi ora la tua offerta individuale

Applicazione Queste fascette di cablaggio con ancoraggi per bordo lamiera sono ideali per installazioni in cui non sono consentiti fori o quando la temperatura ostacola l'applicazione di adesivi. Utilizzate dai quadristi e nell'industria dell'automobile, garantiscono un ottimo risparmio di tempo e denaro.
Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

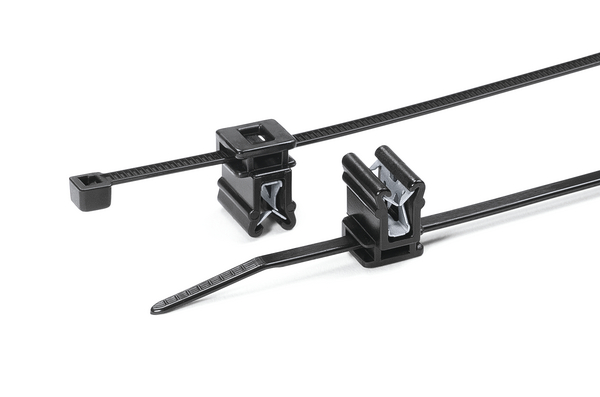

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, top, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment 4
PART DESCRIPTION T30REC4A-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family EdgeClip-Series, 1.0 - 3.0 mm, top fixing
Product Group 2-piece fixing ties for edges
Releasable Closure (Yes/No) No
Type T30REC4A
Variant Inside Serrated
Bundle Diameter max (metric) 33.0mm
Bundle ∅ min. 4.0mm
Height (H) 1.1mm
Height (H2) 16.0mm
Length (L) 148mm
Length (L2) 14.0mm
Min.Tensile Strength 135N
Panel Thickness max. (imperial) 0.06"
Panel Thickness min. (imperial) 0.04"
Thickness (T) 1.1mm
Width (W) 3.6mm
Width (W2) 0.5"
Width (W2) 11.5mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 62275
GTIN-13 / EAN 4031026206493
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01778
Packaging 1 - Weight (kg) 1.134135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.16135kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 166.92kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
