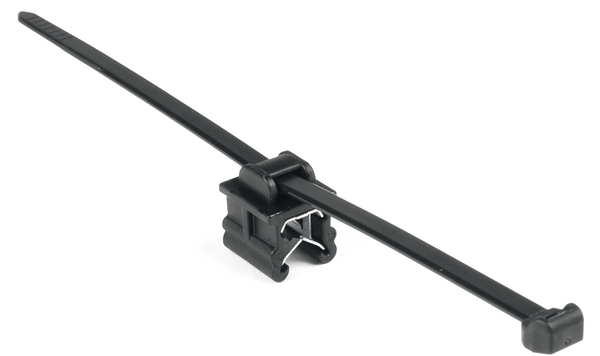

Fascetta di fissaggio per bordi, a dentatura interna, Ø1.5-22.0mm, nero, 500Pz.
UNS 155-37104 | T18REC9SD-PA66HS/PA66HIRHS-BK Dettagli

  • Fascetta 2-piece preassemblata con EdgeClip
  • La testa della fascetta può essere riposizionata dopo la legatura
  • EC9, EC10, EC21 ed EC22 sono per diametri di legatura minimi di 1 mm
  • Per bordi lamiera da 1 a 3 mm di spessore

Richiedi ora la tua offerta individuale

Applicazione Queste fascette di cablaggio con ancoraggi per bordo lamiera sono ideali per installazioni in cui non sono consentiti fori o quando la temperatura ostacola l'applicazione di adesivi. Utilizzate dai quadristi e nell'industria dell'automobile, garantiscono un ottimo risparmio di tempo e denaro.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

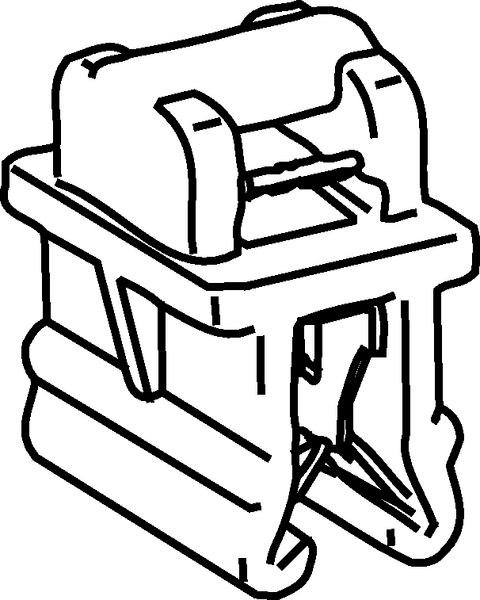

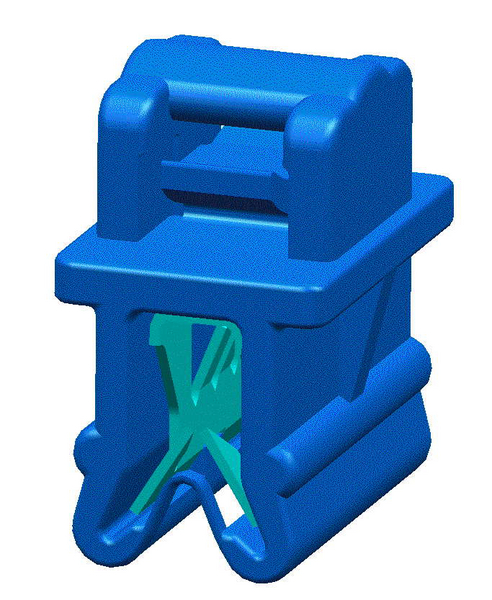

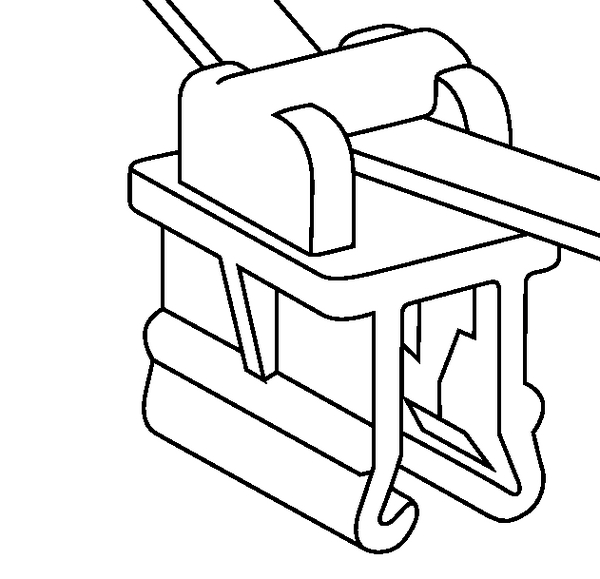

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method EdgeClip, top, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Stainless Steel (SS)
Identification Plate Position none
Key product features for narrow bundling
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T18REC9SD-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family EdgeClip-Series, 1.0 - 3.0 mm, top fixing
Product Group 2-piece fixing ties for edges
Type T18REC9SD
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ min. 1.5mm
Height (H) 1.0mm
Height (H2) 17.75mm
Length (L) 100mm
Length (L2) 15.0mm
Min.Tensile Strength 80N
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.04"
Width (W) 2.45mm
Width (W2) 11.0mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026218267
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.021815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.08178kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 178.008kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
