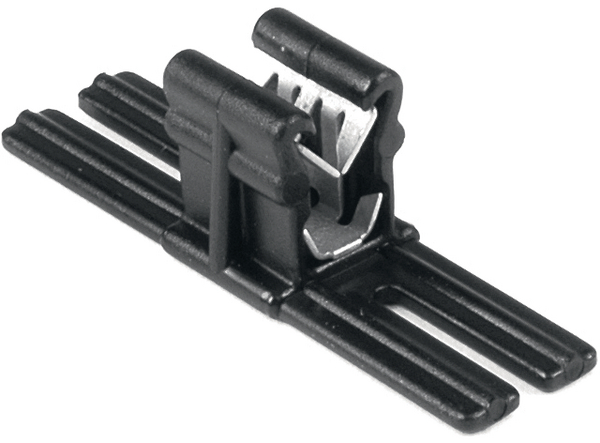

Clip a nastrare per bordi, L=40.0mm, nero, 500Pz.
UNS 151-03404 | EC14-PA66HIRHS-BK Dettagli

  • Facilità di installazione, basta la semplice pressione
  • Per spessori pannello di 1 - 3 mm e 1,5 - 4 mm
  • La clip metallica integrata la mantiene ferma
  • La clip è formata da una doppia molla in acciaio
  • Gli elementi di fissaggio ATS possono essere applicati automaticamente con le attrezzature ATS3080, AT2000, AT2000CPK e CPK hybrid.
Mostra di più

Richiedi ora la tua offerta individuale

Anti rotation (Yes / No) YES
Colour Black (BK)
Fixation Method Edge Clip
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION EC14-PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family 1 - 3 mm and 1.5 - 4.0 mm
Product Group Bundling clips for edges
Type EC14
Wings on clip base (Yes / No) NO

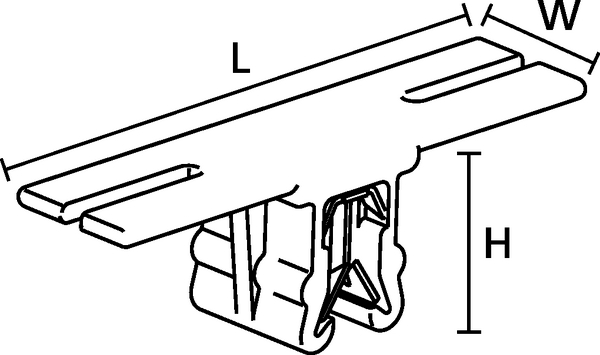

Bundling Bar Length 40.0mm
Height (H) 12.4mm
Length (L) 40.0mm
Panel Thickness 0.04 - 0.12"
Panel Thickness max. 1.0 - 3.0mm
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.04"
Width (W) 10.0mm
for Panel Thickness min - max 1 - 3 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026235530
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00353
Packaging 1 - Weight (kg) 0.685kg
Packaging 1 - Width (m) 0.28m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 8000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.103792kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 263.12kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
