13/06/2024

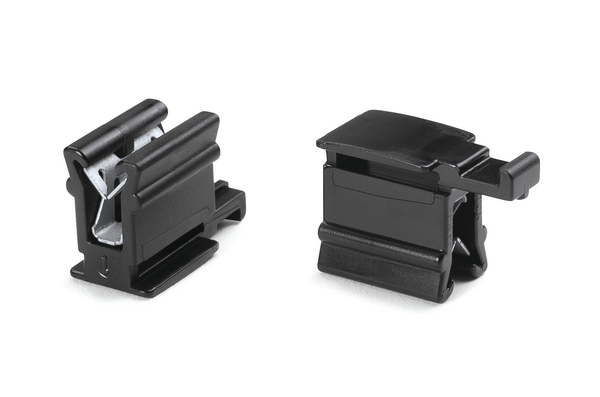

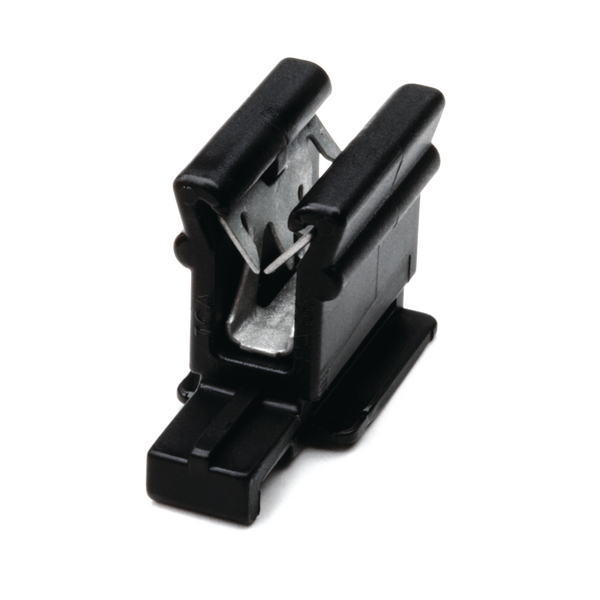

Connector clip per bordi, nero, 1000Pz.
UNS 151-00464 | EC6mod-PA66HIRHS-BK Dettagli

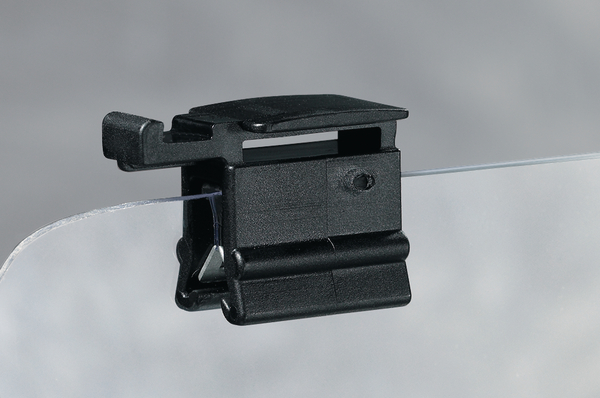

  • I connettori si installano spingendoli nell'apposito invito
  • Il connettore può essere rimosso senza danni
  • Permette di ancorare ad un bordo quasi tutti i connettori presenti sul mercato

Richiedi ora la tua offerta individuale

Colour Black (BK)
Fixation Method Edge Clip
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION EC6mod-PA66HIRHS-BK
Pack Content 1000pcs.
Package Content packed in bag
Product Group Connector clips for edges
Type EC6mod
Height (H) 15.5mm
Length (L) 22.0mm
Panel Thickness 0.04 - 0.12"
Panel Thickness max. 1.0 - 3.0mm
Panel Thickness max. (imperial) 0.12"
Panel Thickness min. (imperial) 0.04"
Width (W) 10.4mm
for Panel Thickness min - max 1 - 3 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
GTIN-13 / EAN 4031026283944
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.707815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 17.89815kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 235.8kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702

Richiedi ora la tua offerta individuale
