Preformato a Y 1301-1-G
UNS 413-01180 | 1301-1-G-PO-X-BK Dettagli

  • Preformati termorestringenti con forma a Y (45°)
  • Riduzione delle tensioni meccaniche interne nei cablaggi

Richiedi ora la tua offerta individuale

Applicazione Preformati termorestringenti per applicazioni in cablaggi elettrici ed elettronici.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1301-1-G-PO-X-BK
Pack Content 1pc.
Package Content packed in pcs.
Product Family Helashrink 1300 Series, 30° & 45° angle
Product Group Angled T-Shapes, VG style

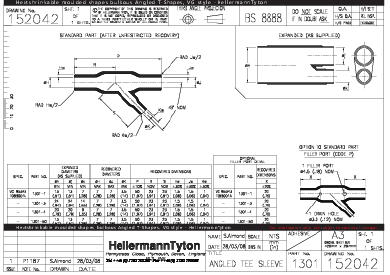

Type 1301-1-G
Variant For 2-core cables
Angle 45
Flexibility semi rigid
HW ± 20 % 1.5mm
HW ± 30 % 1.5mm
JW ± 20 % 1.5mm
JW ± 30 % 1.5mm
KW ± 20 % 1.0mm
P ± 10 % 50.0mm
R nom. 23.0mm
R ± 10 % 23.0mm
S nom. 23.0mm
S ± 10 % 23.0mm
∅H max. b 7.0mm
∅H min. a 13.0mm
∅J max. b 7.0mm
∅J min. a 13.0mm
∅K max. b 3.5mm
∅K min. a 7.0mm
Designation as per VG-Norm VG 95343 T08 B 001 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-188-2163
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Specifications VG 95343-8:2016-03
GTIN-13 / EAN 5022660635427
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00033
Packaging 1 - Weight (kg) 0.005201kg
Packaging 1 - Width (m) 0.1m
UNSPSC Key 39121721
