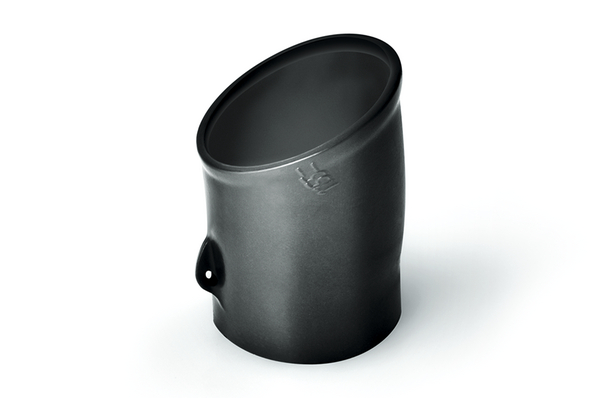

Preformato 90° 1158-4-G
UNS 411-58480 | 1158-4-G-PO-X-BK Dettagli

  • Combinato con un adattatore scanalato riduce gli stress interni
  • Fornisce un isolamento agli agenti esterni

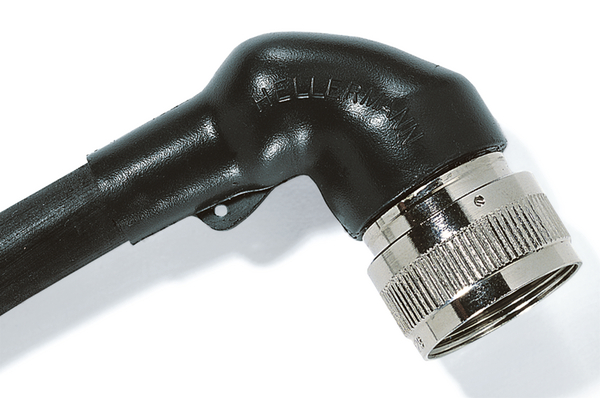

  • Si restringe con un angolo di 90 gradi

Richiedi ora la tua offerta individuale

Applicazione Preformati termorestringenti per applicazioni in cablaggi elettrici ed elettronici.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1158-4-G-PO-X-BK
Pack Content 1pc.
Package Content packed in pcs.
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG style
Shrink Ratio up to 3:1
Type 1158-4-G
Variant For plug
Angle 90
Flexibility semi rigid
HW ± 20 % 3.3mm
JW ± 20 % 1.5mm
JW ± 30 % 1.5mm
M nom. 35.0mm
P ± 20% 101mm
R ± 10 % 54.0mm
S nom. 30.0mm
T ± 10 % 1.7mm
T ± 20 % 1.7mm
V max. 3.3mm
∅H max. b 35.0mm
∅H min. a 60.0mm
∅J max. b 16.0mm
∅J min. a 60.0mm
Designation as per VG-Norm VG 95343 T06 E 006 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-188-2161
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Specifications VG 95343-6
Tensile Strength 15MPa
GTIN-13 / EAN 5022660635144
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00085
Packaging 1 - Weight (kg) 0.060001kg
Packaging 1 - Width (m) 0.1m
UNSPSC Key 39121721
