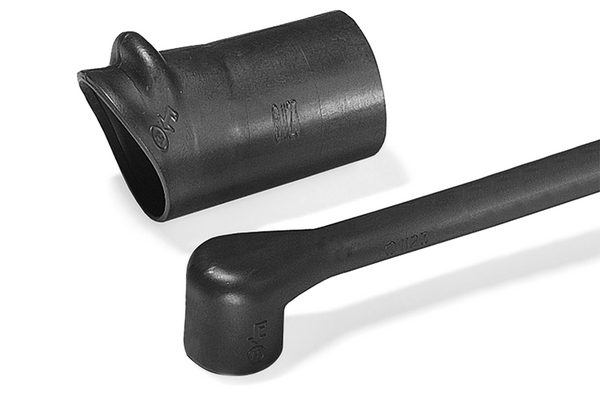

Preformato 90° 1121-1-G
UNS 411-21180 | 1121-1-G-PO-X-BK Dettagli

  • Leggero e a basso profilo
  • Protezione meccanica e riduzione degli stress tra cavo e connettore
  • Tipicamente utilizzato nei cablaggi aerei
  • Si restringe con un angolo di 90 gradi

Richiedi ora la tua offerta individuale

Applicazione Preformati termorestringenti per applicazioni in cablaggi elettrici ed elettronici.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1121-1-G-PO-X-BK
Pack Content 1pc.
Package Content packed in pcs.
Product Family Helashrink 1100 Series, with rib, low profile
Product Group Right-Angle Shapes, VG style/MIL style
Shrink Ratio up to 3:1
Type 1121-1-G
Variant For plug
Angle 90
Flexibility semi rigid

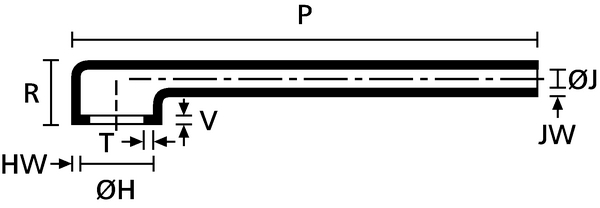

HW ± 20 % 1.5mm
JW ± 20 % 1.1mm
JW ± 30 % 1.1mm
P ± 10 % 70.0mm
R ± 10 % 19.0mm
S nom. 52.0mm
T ± 10 % 1.0mm
T ± 20 % 1.0mm
V max. 3.3mm
V ± 10 % 3.0mm

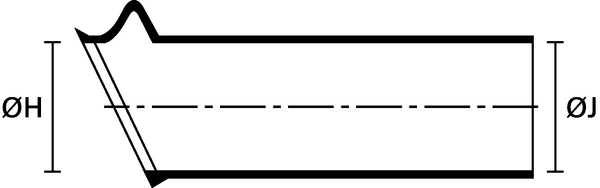

∅H max. b 12.0mm
∅H min. a 22.0mm
∅J max. b 6.5mm
∅J min. a 22.0mm
Designation as per VG-Norm VG 95343 T06 F 001 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-12-325-4108, 5970-99-352-7749
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Specifications VG 95343-6
Tensile Strength 15MPa
GTIN-13 / EAN 5022660635175
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00033
Packaging 1 - Weight (kg) 0.005101kg
Packaging 1 - Width (m) 0.1m
UNSPSC Key 39121721
