13/06/2024

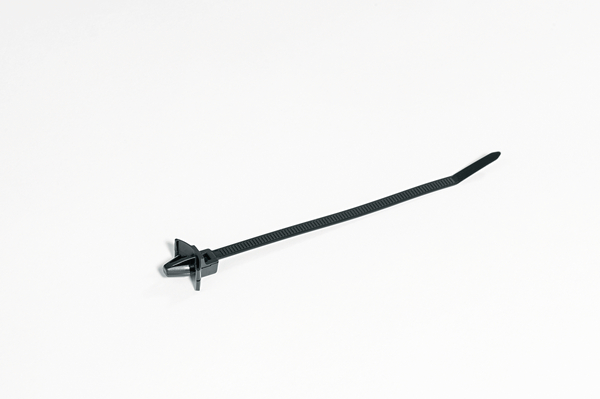

Fascetta di fissaggio per foro (tondo), a dentatura interna, Ø1.5-27.0mm, nero, 500Pz.
UNS 126-02204 | T50SSL5-PA66HS-BK Dettagli

  • Facile da installare, anche senza attrezzo
  • L'ancoraggio a freccia si fissa facilmente in posizione
  • La testa della fascetta una volta montata resta fissa in posizione
  • Le alette di supporto garantiscono un ancoraggio sicuro e fisso in spazi ristretti

Richiedi ora la tua offerta individuale

Applicazione Con un ampio range di fissaggi possibili questa gamma di fascette è ideale per l'utilizzo in molteplici settori inclusi l'automotive, l'aerospaziale, bianco e i costruttori di quadri.
Anti rotation (Yes / No) NO
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SSL5-PA66HS-BK
Pack Content 500pcs.
Package Content packed in pcs.
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SSL5
Variant Inside Serrated
Bundle Diameter max (metric) 27.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 0.64"
Height (H) 10mm
Length (L) 135mm
Min.Tensile Strength 225N
Panel Thickness 0.02 - 0.11"
Panel Thickness max. 0.5 - 2.7mm
Panel Thickness max. (imperial) 0.11"
Panel Thickness min. (imperial) 0.02"
Width (W) 4.6mm
for Hole ∅ (FH) 6.1 - 6.5 mm
for Panel Thickness min - max 0.5 - 2.7 mm
for Panel Thickness min - max 0 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
GTIN-13 / EAN 5022660326868
Packaging 1 - Height (m) 0.12m
Packaging 1 - Length (m) 0.345m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01014
Packaging 1 - Weight (kg) 0.665001kg
Packaging 1 - Width (m) 0.245m
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.596m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0337
Packaging 3 - Weight (kg) 4.59kg
Packaging 3 - Width (m) 0.257m
Packaging 4 - Height (m) 1.284m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 90000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.233
Packaging 4 - Weight (kg) 158.7kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
