Etichette per cavi elettrici, autolaminante, bianco/trasparente, laser, 19.05x38.10mm, H2=93.13mm, 500Pz.
UNS 594-13876
| TAG138LA4-1105-CL/WH
|
Dettagli
- Etichette autolaminanti di elevata qualità

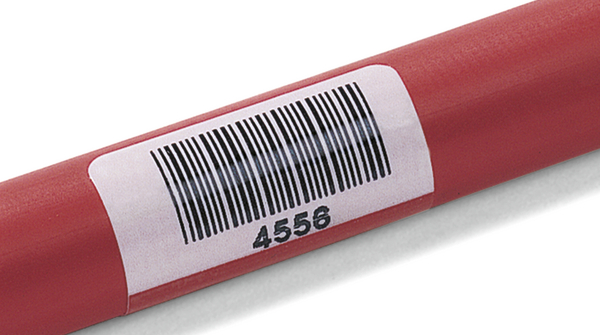

- Adatte per l'identificazione di cavi e fili
- La funzione autolaminante fornisce una elevata protezione contro l'umidità e l'abrasione
- Gli angoli arrotondati permettono un'adesione ancora migliore
- Materiale spesso (50 micron) per etichette più resistenti
- Progettazione delle etichette semplice ed efficace con il software TagPrint Pro
- Sul sito www.HellermannTyton.it/modelli-etichette sono disponibili i template per stamparle con MS Word
- Confezionate in una cartellina trasparente per assicurarne la durata nel tempo
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | Queste etichette sono ideali per identificare cavi con grandi diametri. Il materiale 1105 delle etichette autolaminanti supera la dimensione di 100 mm ed è più spesso del materiale 1104. Grazie alla sua maggiore rigidità queste etichette sono facili da applicare perchè si rimuovono facilmente dal loro supporto per essere applicate a mano su grandi cavi o condotti. |
Chem. Material Properties | Excellent resistance to alcohol, gasoline, cleaning solvents, butanol, ethyl and Butylcellosolve solvent, battery acid. |
Colour | White (WH), Transparent (CL) |
Colour Marking Field | White (WH) |
Fixation Method | Stick |
Material | Type 1105, Polyester, white transparent, self-laminating (1105) |
PART DESCRIPTION | TAG138LA4-1105-CL/WH |
Pack Content | 500pcs. |
Package Content packed in | pack |
Paper Format | A4 |
Product Family | Helatag 1105 (White-Transparent) |
Product Group | Self-laminating labels, laser printer |
Self adhesive (Yes/No) | Yes |
Type | TAG138LA4 |
Variant | Adhesive label |
With label space | Yes |
Bundle Diameter max (metric) | 23.60mm |
Bundle ∅ min. | 11.80mm |
Height (H) | 19.05mm |
Height (H2) | 93.13mm |
Outside ∅ max (OD max.) | 23.60mm |
Outside ∅ min. (OD min.) | 11.8mm |
Print Method | laser print |
Print Method (Alternative) | laser beam print |
Thickness (T) | 23.0µm |
Thickness of Adhesive (TA) nom. | 22.5µm |
Thickness of Foil | 50 |
Thickness of foil test method | TAPPI 411 |
VR | 96.50mm |
Width (W) | 38.10mm |
Width of Liner (WL) | 210.00mm |
Adhesive | Acrylic |
Curing Temperature | from +2 °C |
ELV compliant (Article 4 - 2) | YES |
Halogen-free | Yes |
Hazardous Goods | No |
Initial tack | 280g/cm² |
Initial tack | ASTM D2979-71 |
Operating Temperature | -40 °C to +150 °C |
Peel strength | 100 h |
Peel strength test method | FINAT FTM 8 |
Pre-Printed | No |
ROHS compliant | Yes |
Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
Specifications |
|
|
GTIN-13 / EAN | 4031026294452 |
Labels per Row | 5pcs. |
Labels per Sheet | 15pcs. |
Packaging 1 - Height (m) | 0.019m |
Packaging 1 - Length (m) | 0.316m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | pack |
Packaging 1 - Volume (m³) | 0.00143m³ |
Packaging 1 - Weight (kg) | 0.627kg |
Packaging 1 - Width (m) | 0.239m |
Packaging 3 - Height (m) | 0.24m |
Packaging 3 - Length (m) | 0.55m |
Packaging 3 - Qty | 20000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0515m³ |
Packaging 3 - Weight (kg) | 24.5kg |
Packaging 3 - Width (m) | 0.39m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Type | pallet |
Packaging 4 - Width (m) | 0.8m |
Sheets per Pack | 34pcs. |
Storage Temperature | +21 °C |
Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
