Etichetta autolaminante KIT SPRO200-1401-WH
UNS 550-14010
| SPRO200-1401-CL/WH
|
Dettagli

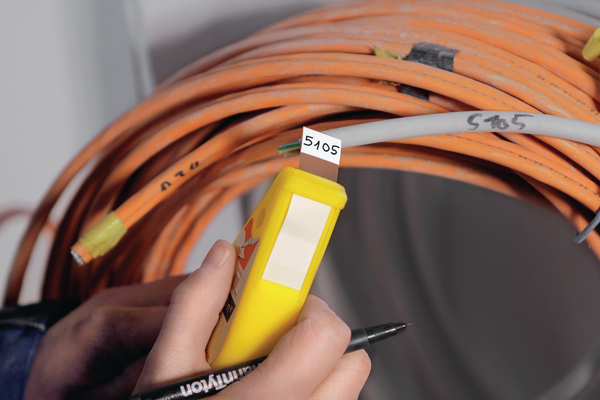

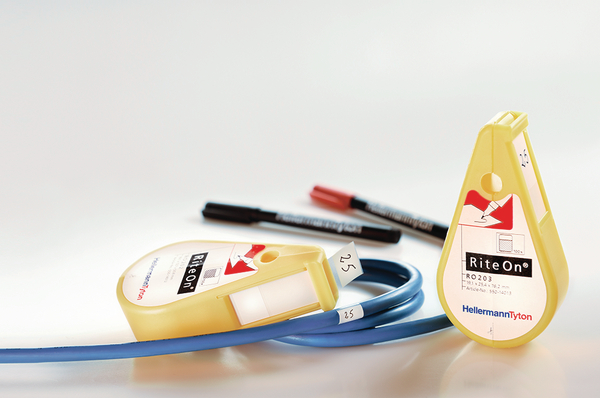

- Dispenser compatto portatile di etichette autolaminanti
- Facilita la scrittura e l'applicazione delle etichette
- Copre una vasta gamma di diametri di cavo
- Ideale per piccoli volumi, per lavori di manutenzione e riparazione

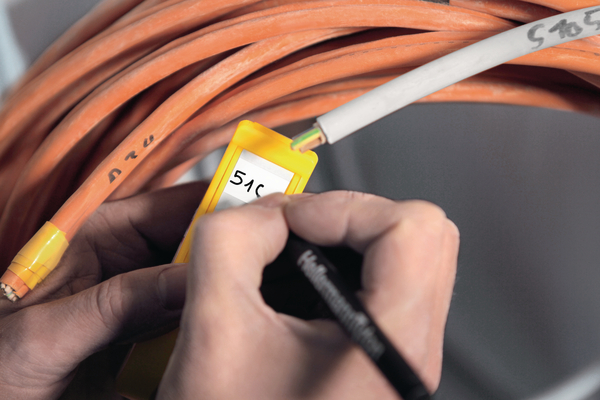

- Il testo si può scrivere con lo speciale pennarello con inchiostro ad asciugatura rapida
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:

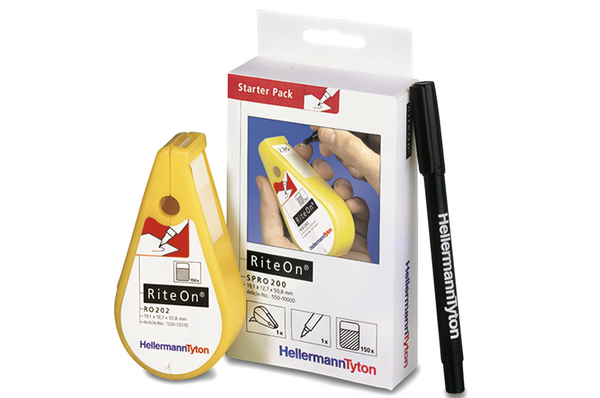

Applicazione | Materiale sviluppato specificatamente per etichette da avvolgere intorno a cavi e fili. La struttura dell'etichetta si adatta in modo tale da assicurare che una volta applicata non ci saranno sollevamenti della parte laminante. Lo SPRO200-1401-WH Starter Pack contiene tutto il necessario per cominciare ad identificare: 1 x RiteOn dispenser 1 x R202 bobina di 150 etichette autolaminanti per diametri da 6 mm a 12 mm 1 x T82S-BK pennarello nero indelebile |
Chem. Material Properties | Resistant to water, oil and many solvents. |
Colour | White (WH), Transparent (CL) |
Colour Marking Field | White (WH) |
Description | Starter pack |
Fixation Method | Pasting / Stick |
Material | Type 1401, Vinyl (1401) |
PART DESCRIPTION | SPRO200-1401-CL/WH |
Pack Content | 150pcs. |
Package Content packed in | pack |
Product Family | RiteOn, starter pack, material 1401, dispenser |
Product Group | Self-laminating labels, manual marking |
Self adhesive (Yes/No) | Yes |
Type | SPRO200 |
Variant | Roller form |
With label space | Yes |
Bundle Diameter max (metric) | 12.10mm |
Bundle ∅ min. | 6.10mm |
Height (H) | 12.70mm |
Height (H2) | 50.80mm |
Outside ∅ max (OD max.) | 12.1mm |
Outside ∅ min. (OD min.) | 6.1mm |
Print Method | manual marking |
Thickness of Adhesive (TA) nom. | 27.5µm |
Thickness of Foil | 80 |
Thickness of foil test method | ASTM D3652-83 |
Width (W) | 19.05mm |
Width of Liner (WL) | 19.05mm |
Adhesive | Acrylic |
Curing Temperature | from +10 °C |
ELV compliant (Article 4 - 2) | YES |
Halogen-free | No |
Hazardous Goods | No |
Initial tack | 110g/cm² |
Initial tack | ASTM D2979-71 |
Operating Temperature | -40 °C to +80 °C |
Peel strength | 550 N/m |
Peel strength test method | PSTC 7 |
ROHS compliant | Yes |
Shear strength | 120h |
Shear strength test method | FINAT FTM 7 |
Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
Specifications |
|
|
GTIN-13 / EAN | 4031026294032 |
Labels per Row | 1pc. |
Packaging 1 - Height (m) | 0.032m |
Packaging 1 - Length (m) | 0.161m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00044m³ |
Packaging 1 - Weight (kg) | 0.08701kg |
Packaging 1 - Width (m) | 0.085m |
Storage Temperature | +21 °C |
Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
