24/05/2024

Etichetta, autolaminante, bianco/trasparente, manuale, 25.40x19.05mm, H2=76.20mm, 100Pz.
UNS 550-71401 | RO203REF-1401-CL/WH Dettagli

  • Dispenser compatto portatile di etichette autolaminanti
  • Facilita la scrittura e l'applicazione delle etichette
  • Copre una vasta gamma di diametri di cavo
  • Ideale per piccoli volumi, per lavori di manutenzione e riparazione
  • Il testo si può scrivere con lo speciale pennarello con inchiostro ad asciugatura rapida
Mostra di più

Richiedi ora la tua offerta individuale

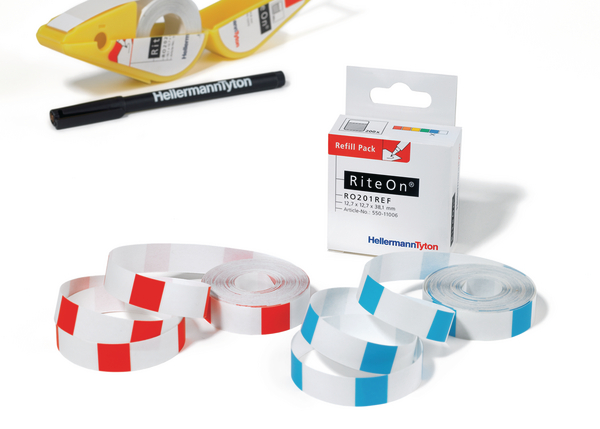

Applicazione Le ricarche sonon disponibili in 6 differenti colori per ogni tipo di applicazione. Ricaricare il dispenser RiteOn è più che semplice.
Chem. Material Properties Resistant to water, oil and many solvents.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Description Refill packs
Fixation Method Pasting / Stick
Material Type 1401, Vinyl (1401)
PART DESCRIPTION RO203REF-1401-CL/WH
Pack Content 100pcs.
Package Content packed in reel
Product Family RiteOn, refill pack, material 1401 for dispenser
Product Group Self-laminating labels, manual marking
Self adhesive (Yes/No) Yes
Type RO203REF
Variant Roller form
With label space Yes
Bundle Diameter max (metric) 18.20mm
Bundle ∅ min. 9.10mm
Height (H) 25.40mm
Height (H2) 76.20mm
Outside ∅ max (OD max.) 18.2mm
Outside ∅ min. (OD min.) 9.1mm
Print Method manual marking
Thickness of Adhesive (TA) nom. 27.5µm
Thickness of Foil 80
Thickness of foil test method ASTM D3652-83
Width (W) 19.05mm
Width of Liner (WL) 19.05mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant (Article 4 - 2) YES
Halogen-free No
Hazardous Goods No
Initial tack 110g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Peel strength 550 N/m
Peel strength test method PSTC 7
Pre-Printed No
ROHS compliant Yes
Shear strength 120h
Shear strength test method FINAT FTM 7
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
GTIN-13 / EAN 4031026294230
Labels per Row 1pc.
Packaging 1 - Height (m) 0.083m
Packaging 1 - Length (m) 0.058m
Packaging 1 - Qty 100
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00013
Packaging 1 - Weight (kg) 0.02001kg
Packaging 1 - Width (m) 0.027m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.

Richiedi ora la tua offerta individuale
