13/06/2024

Etichette per cavi elettrici, autolaminante, bianco/trasparente, trasferimento termico, 25.40x50.80mm, H2=95.25mm, 500Pz.
UNS 596-06320 | TAG6TD1-323-CL/WH Dettagli

  • Etichette autolaminanti per alte temperature
  • Molto resistenti a graffi e agenti chimici
  • La lamina trasparente garantisce una elevata protezione contro umidità, sporco, detriti e abrasione meccanica
  • Resiste 5 anni agli agenti atmosferici nel clima dell'Europa centrale

Richiedi ora la tua offerta individuale

e-Learning

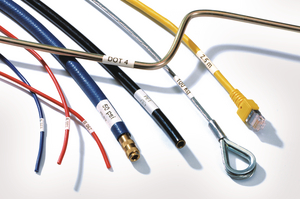

Applicazione Queste etichette autolaminanti sono formate da un'area stampabile e da una sovralamina trasparente che protegge la stampa da agenti esterni: l'umidità, lo sporco, i detriti e l'abrasione meccanica. Grazie all'elevata resistenza alle alte temperature sono ideali per l'utilizzo su cavi e fili in condizioni estreme, anche all'esterno. Particolarmente utilizzate in ambito industriale e militare.
Application Tool TT431, TT4030
Chem. Material Properties Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Fixation Method Pasting / Stick
Material Type 323, Polyvinylidene Fluoride (323)
Mech. material properties Permanent adhesive, extremely scratch resistant
PART DESCRIPTION TAG6TD1-323-CL/WH
Pack Content 500pcs.
Package Content packed in pcs.
Product Family Helatag 323, high temperature
Product Group Self-laminating labels, thermal transfer
Self adhesive (Yes/No) Yes
Type TAG6TD1
Variant Roller form
With label space Yes
Bundle Diameter max (metric) 22.20mm
Bundle ∅ min. 10.00mm
H printable 25.40mm
Height (H) 25.40mm
Height (H2) 95.25mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Thickness of Foil 25
Thickness of foil test method ASTM D3652-83
VR 101.60mm
Width (W) 50.80mm
Width of Liner (WL) 55.00mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Initial tack 400g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +140 °C
ROHS compliant Yes
Recommended Ribbon Type TT932DOUT
Shear strength 100h
Shear strength test method ASTM D3654
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
UL Recognized (US and Canada) Yes
GTIN-13 / EAN 4031026213699
Labels per Row 1pc.
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00159
Packaging 1 - Weight (kg) 0.479501kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.55m
Packaging 3 - Qty 15000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0515
Packaging 3 - Weight (kg) 14.885kg
Packaging 3 - Width (m) 0.39m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
UNSPSC Key 55121612
