13/06/2024

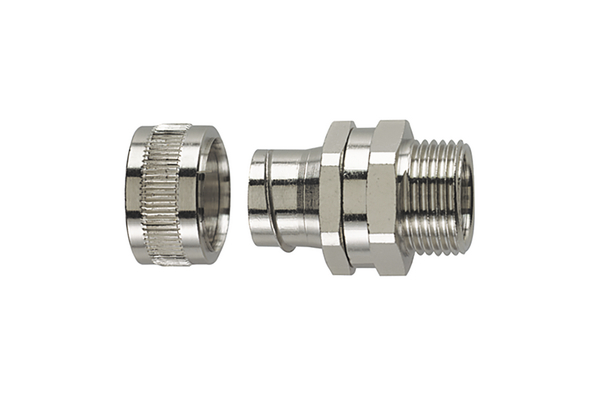

Raccordo girevole SC SC12-SM-M16
UNS 166-30401 | SC12-SM-M16-NPB/PS-ML Dettagli

  • Raccordo in due elementi: involucro e corpo centrale con filetto maschio
  • Il filetto può ruotare rispetto al corpo del raccordo
  • Garantisce una tenuta sicura ed affidabile sulla guaina
  • Può essere fissato con un controdado

Richiedi ora la tua offerta individuale

Applicazione Raccordo in ottone nichelato con filetto maschio girevole.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Plated Steel (PS)
Metallic Fitting Type Standard
PART DESCRIPTION SC12-SM-M16-NPB/PS-ML
Pack Content 10pcs.
Package Content packed in bag
Product Family SC-SM Swivel external thread, IP40
Product Group Fittings for metallic conduits
Thread type metric
Type SC12-SM-M16
Type of connection Thread
Variant Straight

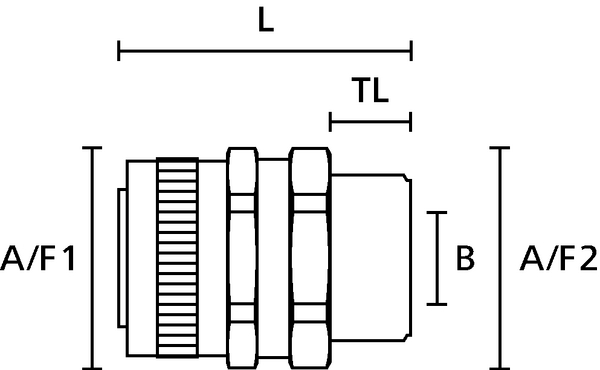

A/F Thread (A/F2) 17mm
Height (H) 17.0mm
Length (L) 32.2mm
Lowest inner diameter 8.5mm
Min. Bore Size (B) 8.5mm
Nominal ∅ 0.5"
Nominal ∅ 12mm
Thread Length (TL) 8.0mm
Thread Size M16
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant (Article 4 - 2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026306339
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00074
Packaging 1 - Weight (kg) 0.319031kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
