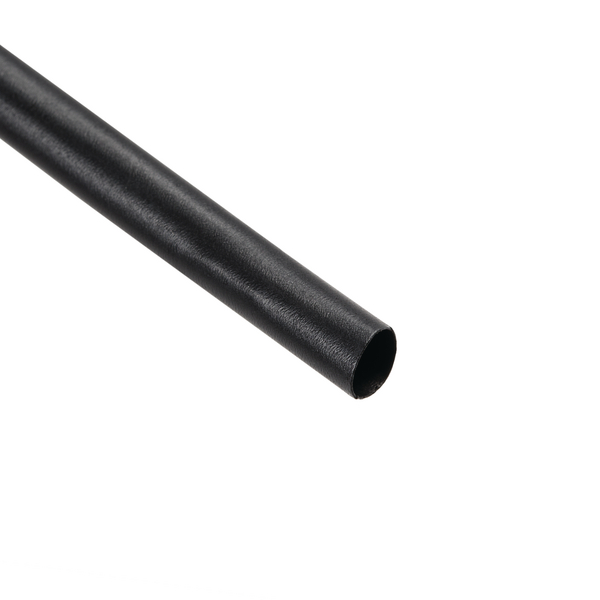

Termo media colla 4:1 TREDUX-MA47-50/16
UNS 323-50500 | TREDUX-MA47-50/16-PO-X-BK Dettagli

  • Guaina termorestringente a parete media
  • Parete adesiva per la protezione dall'umidità e dagli agenti atmosferici
  • Tubo termoretraibile da 1 m fornito in una pratica scatola espositiva
  • Tutti i tubi possono essere venduti in singole lunghezze da 1 metro o a scatola intera

Richiedi ora la tua offerta individuale

Applicazione Utilizzato per isolamento e protezione di giunzioni e terminazioni a basso voltaggio.
Application Tool H6100, CHG900
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not cracking, not fluid, not dripping
Behaviour at low Temperature test method ASTM D2671
Colour Black (BK)
Elongation At Heat Aging 300%
Heat Aging Test 168h/150°C
Heat Aging test method ASTM D2671
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 12MPa
PART DESCRIPTION TREDUX-MA47-50/16-PO-X-BK
Pack Content 2pcs.
Package Content packed in pcs.
Printable No
Product Family TREDUX MA47 - medium wall adhesive lined
Product Group Heat shrinkable tubing up to 4:1 - 1 m lengths
Shrink Ratio up to 4:1
Type TREDUX-MA47-50/16
Variant Medium-Wall
Voltage range Low voltage
With inner glue (Yes/No) Yes
Length (L) 1.0m
Longitudinal Change After Shrinkage -10% max.
Nominal ∅ 2"
Nominal ∅ 50mm
Recov. ∅ d max. 0.62"
Recov. ∅ d max. 16.0mm
Supplied ∅ D min. 1.96"
Supplied ∅ D min. 50.0mm
Wall (WT) .1"
Wall (WT) 2.7mm
Wire Size Range (mm²) 22.8-43.2mm²
Adhesive Hot melt adhesive
Dielectric Strength 15kV/mm
Dielectric Strength test method IEC 60243
ELV compliant (Article 4 - 2) YES
Elongation at break 350
Elongation at break test method ASTM D2671
Halogen-free Yes
Hazardous Goods No
Insulation Class A (VDE 0530)
Min. Shrink Temperature - °C +120 °C
Operating Temperature -55 °C to +110 °C
ROHS compliant Yes
Softening Point Adhesive +85 °C
Specifications
Tensile Strength 12MPa
Tensile Strength test method IEC 93
Test Method Tensile Strength ASTM D2671
Volume Resistance 10¹² Ω cm
Water Absorption 0.2%
GTIN-13 / EAN 4031026239798
Packaging 1 - Height (m) 0.094m
Packaging 1 - Length (m) 1.068m
Packaging 1 - Qty 2
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00944
Packaging 1 - Weight (kg) 1.166001kg
Packaging 1 - Width (m) 0.094m
Packaging 3 - Height (m) 0.132m
Packaging 3 - Length (m) 1.081m
Packaging 3 - Qty 4
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.034
Packaging 3 - Weight (kg) 3.932kg
Packaging 3 - Width (m) 0.238m
Packaging 4 - Height (m) 1.201m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.153
Packaging 4 - Weight (kg) 91.776kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121723
