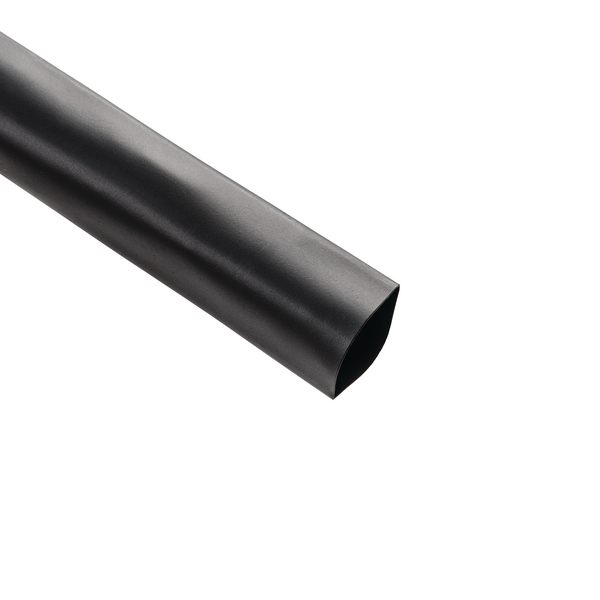

Termorestringente 2:1 UL TCN20-12.7/6.4
UNS 300-73080 | TCN20-12.7/6.4-PO-X-BK Dettagli

  • Guaina a parete sottile in poliolefina
  • Autoestinguente, UL224 VW-1, CSA
  • Restringimento rapido
  • Bassa temperatura di restringimento
Dimensioni della confezione

Richiedi ora la tua offerta individuale

Applicazione TCN20 è ideale per un'ampia gamma di applicazioni come isolamento elettrico, protezione meccanica, protezione cavi.
Application Tool H6100
Colour Black (BK)
Elongation At Heat Aging 350%
Heat Aging Test 168h/160°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 14MPa
PART DESCRIPTION TCN20-12.7/6.4-PO-X-BK
Pack Content 100m
Package Content packed in reel
Printable No
Product Family TCN20 - up to +125°C, self-extinguishing
Product Group 2:1 heat shrink tubing - on reel & customized cut lengths
Shrink Ratio 2:1
Size 1/2"
Type TCN20-12.7/6.4
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 100m
Longitudinal Change After Shrinkage +/-5%
Nominal ∅ 0.5"
Nominal ∅ 12.7mm
Recov. ∅ d max. 0.25"
Recov. ∅ d max. 6.4mm
Supplied ∅ D min. 0.5"
Supplied ∅ D min. 12.7mm
Tube Shape Flat
Wall (WT) .025"
Wall (WT) 0.62mm
CSA Certified Yes
Dielectric Strength 20kV/mm
ELV compliant (Article 4 - 2) YES
Elongation at break 400%
Flammability UL 224 VW-1
Halogen-free No
Hazardous Goods No
Insulation Class E (VDE 0530)
Min. Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to +125 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications C22.2 no. 198.1-06, DIN 75200 (09/1980), UL 224 125 °C 600V VW-1
Specifications
Tensile Strength 14MPa
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
GTIN-13 / EAN 4031026282787
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.385m
Packaging 1 - Qty 100
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.01112
Packaging 1 - Weight (kg) 2.366kg
Packaging 1 - Width (m) 0.385m
Packaging 3 - Height (m) 0.42m
Packaging 3 - Length (m) 0.405m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0689
Packaging 3 - Weight (kg) 12.33kg
Packaging 3 - Width (m) 0.405m
Packaging 4 - Height (m) 0.984m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.945
Packaging 4 - Weight (kg) 70.32kg
Packaging 4 - Width (m) 0.8m
Reel Length 328.0ft
Reel Length 100.0m
UNSPSC Key 39121723
