Termorestringente colla 3:1 barra TA37-24/8
UNS 315-13006 | TA37 24-8-PO-X-BK Dettagli

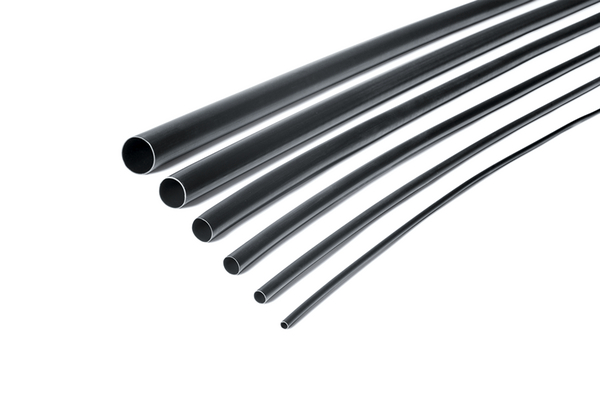

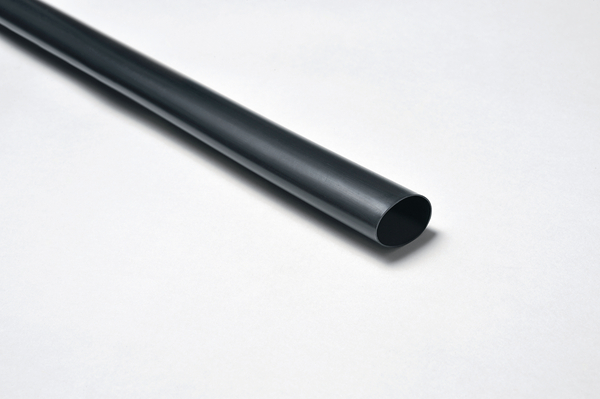

  • Guaina termorestringente a parete sottile con adesivo interno
  • Zero alogeni
  • Ritardante di fiamma
  • La combinazione di queste tre proprietà (zero alogeni, adesivo interno e ritardante di fiamma) è unica
  • Bassa generazione di fumo
  • Bassa generazione di gas tossici e acidi corrosivi
Mostra di più

Richiedi ora la tua offerta individuale

Applicazione La guaina termorestringente TA37 ha una bassa emissione di fumo ed eccellenti proprietà ritardanti di fiamma in modo da soddisfare rigorosi standard di sicurezza antincendio nell'isolamento elettrico.
Application Tool H6100
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not fluid, not dripping, not cracking
Behaviour at low Temperature test method SAE-AS23053
Colour Black (BK)
Heat Aging Test 168h/138°C
Heat Shock Test 4h/225°C
Material Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging 7.3MPa
PART DESCRIPTION TA37 24-8-PO-X-BK
Pack Content 1.2m
Package Content packed in pcs.
Printable No
Product Family TA37 – thin wall adhesive lined
Product Group Heat shrinkable tubing 3:1 - Flame retardant
Shrink Ratio 3:1
Type TA37 24-8
Variant Thin-Wall
With inner glue (Yes/No) Yes
Length (L) 1.2m
Longitudinal Change After Shrinkage +3%/-15%
Recov. ∅ d max. 8.0mm
Supplied ∅ D min. 24.0mm
Wall (WT) 2.50mm
Adhesive Hot melt adhesive
Dielectric Strength 19.7kV/mm
Dielectric Strength test method ASTM D876
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL3, R23 HL3
Elongation at break 200%
Elongation at break test method ASTM D638
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Min. Shrink Temperature - °C +120 °C
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Self extinguishing Yes
Softening Point Adhesive +85 °C
Specifications conforms to BS6853, conforms to LUL E1042:A6, DIN EN ISO 4892-2, EN 45545-2, IEC 60068-2-5:2018, Test Sa2 (Solar radiation test)
Specifications
Tensile Strength 10.4MPa
Test Method Tensile Strength ASTM D638
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Volume Resistance 10¹³ Ω cm
Water Absorption 1.0%
GTIN-13 / EAN 4031026444581
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 1.37m
Packaging 1 - Qty 15
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01644
Packaging 1 - Weight (kg) 1.596kg
Packaging 1 - Width (m) 0.24m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 1.28m
Packaging 3 - Qty 75
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0865
Packaging 3 - Weight (kg) 8.81kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 450
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 105.74kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121723
