Termorestringente VG 12.7/6.4 nero HFT-A
UNS 305-12700 | HFT-A-12.7/6.4-PO-X-BK Dettagli

  • Guaina termorestringente flessibile
  • Restringimento rapido, meneggevolezza, buona resistenza meccanica
  • Facile da stampare
  • Vasta gamma di colori
  • Diametri interni fino a 102 mm
  • Omologato UL-224 e CSA, approvato VG
Mostra di più

Richiedi ora la tua offerta individuale

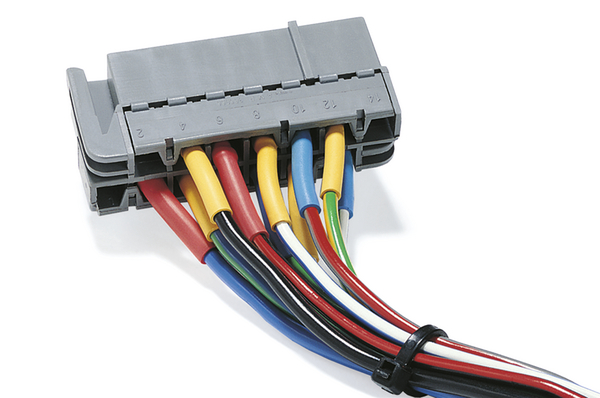

Applicazione Questa guaina dalla parete sottile altamente performante viene ampiamente utilizzata per la protezione elettrica e meccanica. Inoltre è una guaina ideale per l'identificazione dei cablaggi.
Application Tool H5002, E4500
Behaviour At Low Temperature not cracking
Behaviour at low Temperature test method IEC 60684-2
Colour Black (BK)
Heat Shock Elongation 390%
Heat Shock Tensile Strength 13MPa
Heat Shock Test 4h/200°C
Heat shock test test method IEC 60684-2
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION HFT-A-12.7/6.4-PO-X-BK
Pack Content 100m
Package Content packed in metre
Printable No
Product Family HFT-A - self extinguishing
Product Group Heat shrinkable tubing 2:1 - flexible and coloured
Shrink Ratio 2:1
Size 1/2"
Type HFT-A-12.7/6.4
Variant Thin-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -5% max.
Recov. ∅ d max. 0.25"
Recov. ∅ d max. 6.4mm
Supplied ∅ D min. 0.5"
Supplied ∅ D min. 12.7mm
Wall (WT) 0.6mm
CSA Certified Yes
Designation as per VG-Norm VG 95343 T05 A 008 A
Dielectric Strength 21kV/mm
Dielectric Strength test method IEC 60684-2
ELV compliant (Article 4 - 2) YES
Elongation at break 400%
Elongation at break test method IEC 60684-2
Flammability UL 224 VW-1
Halogen-free No
Hazardous Goods No
Insulation Class B (VDE 0530)
Min. Shrink Temperature - °C +135 °C
Nato number 5970-99-539-0180, 5970-99-749-1715, 5970-99-709-5023, 5970-99-658-0136, 5970-99-640-2850, 5970-99-539-0305, 5970-12-159-4430, 5970-14-585-2702
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications CLASS 903201, UL 224, VG 95343-5:2016-10
Specifications
Tensile Strength 14MPa
Test Method Tensile Strength IEC 60684-2
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E143529
Volume Resistance 10¹⁴ Ω cm
Volume Resistance test method IEC 60684-2
GTIN-13 / EAN 4031026141008
Packaging 1 - Height (m) 0.245m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 100
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.03726
Packaging 1 - Weight (kg) 2.058kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 100
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0416
Packaging 3 - Weight (kg) 3.607kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.185m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.138
Packaging 4 - Weight (kg) 107.563kg
Packaging 4 - Width (m) 0.8m
Reel Length 328.0ft
Reel Length 100.0m
UNSPSC Key 39121723
