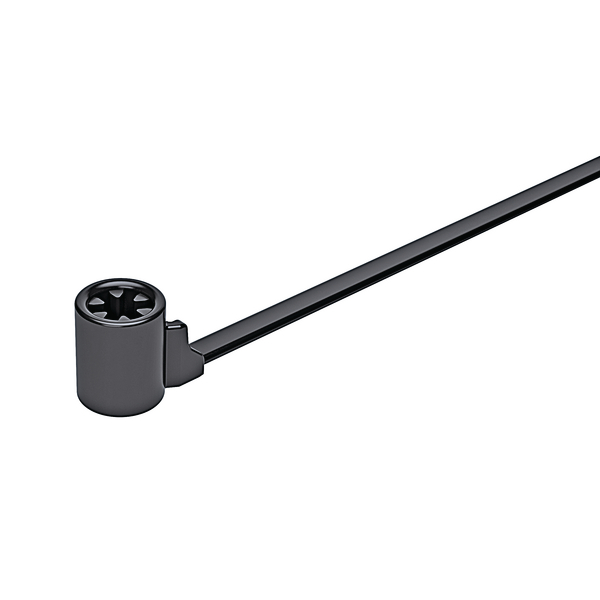

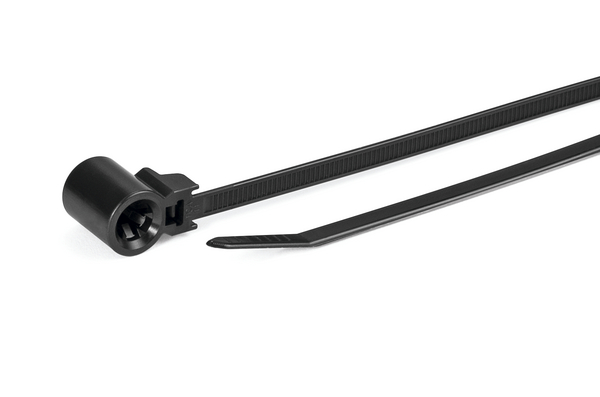

Fascetta di fissaggio per perno, a dentatura esterna, Ø1.0-35.0mm, nero, 500Pz.
UNS 157-00252 | T50SOSSBS5E-2-PA66HS-BK Dettagli

  • Fascette di fissaggio 1-piece
  • Materiali con elevate specifiche
  • Design superiore
  • Adatte ad applicazioni complesse

Richiedi ora la tua offerta individuale

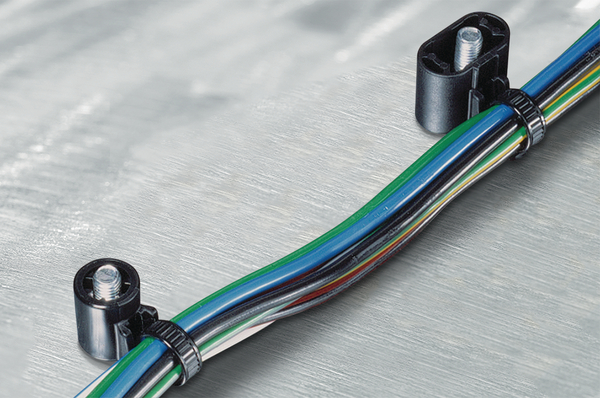

Applicazione Disegnate principalmente per l'utilizzo nell'industria dell'automotive, questi prodotti possono essere utilizzati in un'ampia varietà di applicazioni dove sono utilizzati perni o bulloni ISO, e i cavi devono essere legati e fissati.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSSBS5E-2-PA66HS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family For cable routing alongside the stud
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSSBS5E-2
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 1.0mm
Height (H) 1.35mm
Height (H2) 15mm
Length (L) 161.0mm
Max Stud Length 14.0mm
Min Stud Length 8.0mm
Min.Tensile Strength 225N
Stud ∅ 0.2"
Stud ∅ 5.0 mm
Thickness (T) 1.35mm
Width (W) 4.7mm
Width (W2) 0.5"
Width (W2) 12.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5975-12-403-8965
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026540467
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 1.187538kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.644304kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 136.776kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
