24/05/2024

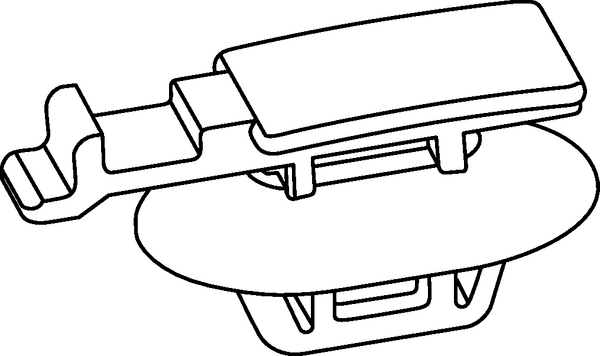

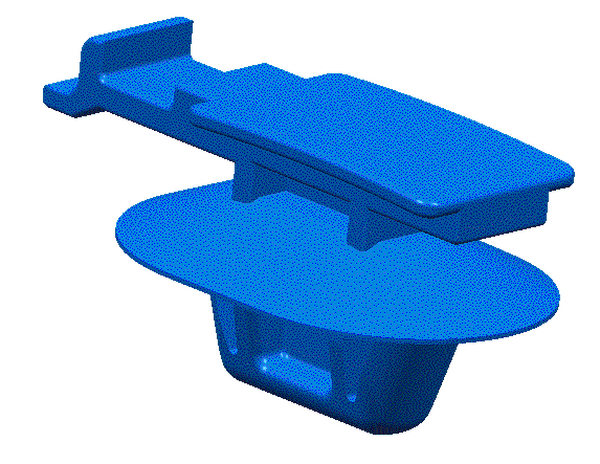

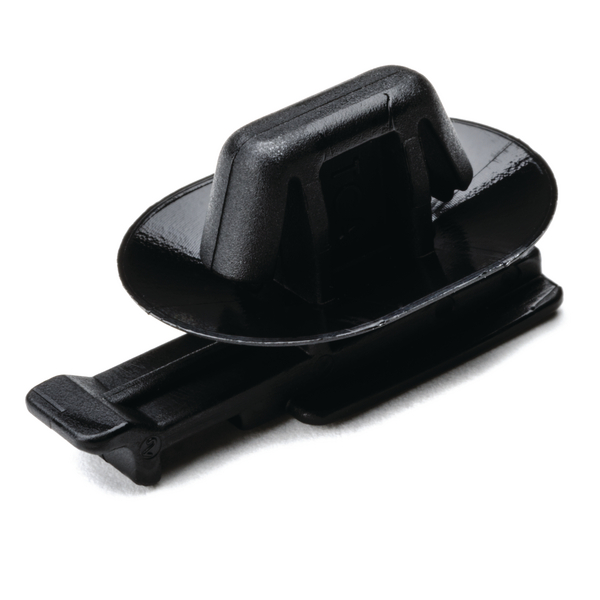

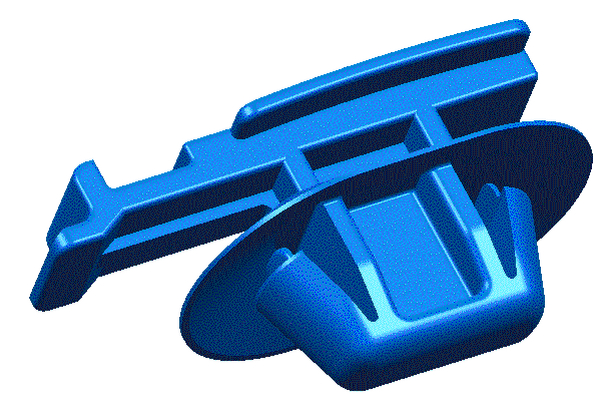

Connector clip per foro (ovale), EWCAP-005-11, nero, 500Pz.
UNS 151-00513 | YCCSFT62122-PA66HIRHS-BK Dettagli

Richiedi ora la tua offerta individuale

Anti rotation (Yes / No) YES
Colour Black (BK)
Fixation Method arrowhead
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION YCCSFT62122-PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Group Connector Clips for Oval Holes
Type YCCSFT62122
Disc ∅ 0.87"
Disc ∅ 22.0mm
Fixing Hole Shape Oval
Height (H) 14.1mm
Length (L) 27.5mm
Panel Thickness 0.02 - 0.04"
Panel Thickness max. 0.6 - 1.0mm
Panel Thickness max. (imperial) 0.04"
Panel Thickness min. (imperial) 0.02"
Width (W) 16.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.6 - 1 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026277202
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.551478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 15000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 17.36434kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 229.2kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
