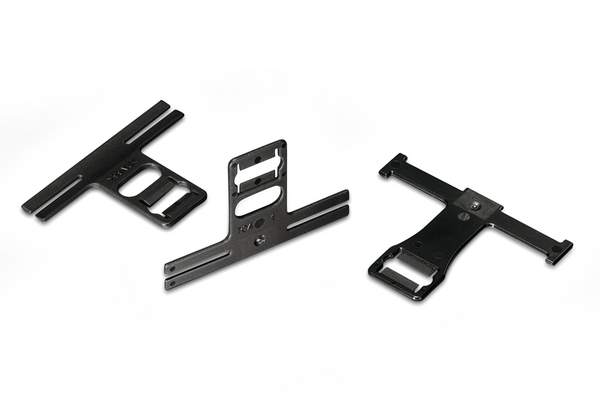

Clip a nastrare per perno, L=55.0mm, SO=22.8mm, nero, 1000Pz.
UNS 151-00017 | BC2212-PA66HIRHS-BK Dettagli

  • Clip a nastrare molto piatta
  • Compensazione delle tolleranze orizzontale
  • Adatta a cavi di diametro e peso ridotti

Richiedi ora la tua offerta individuale

Applicazione La serie BC si sta rivelando ottimale nel settore automobilistico, come supporto per il fissaggio dei cavi in vari settori dei veicoli.
Colour Black (BK)
Fixation Method Weld Stud Fixing
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BC2212-PA66HIRHS-BK
Pack Content 1000pcs.
Package Content packed in bag
Product Family for distance routing
Product Group Bundling clips for weld studs, lateral adjustment
Type BC2212
Wings on clip base (Yes / No) NO
Bundling Bar Length 2.17"
Bundling Bar Length 55.0mm
Height (H) 1.5mm

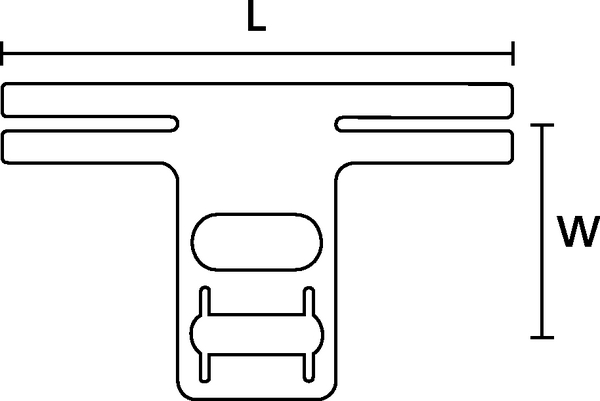

Length (L) 55.0mm
Length (L2) 22.0mm
Max Stud Length 0.9"
Max Stud Length 22.8mm
Offset Length 22.8mm
Stud ∅ 0.20"
Stud ∅ 5.0 mm
Width (W) 34.0mm
∅ D 0.2"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4031026250229
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.38m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00445
Packaging 1 - Weight (kg) 0.941815kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 10.03815kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 141.48kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 26121630
