Fascetta di fissaggio per perno, a dentatura interna, Ø6.4-33.0mm, nero, 500Pz.
UNS 115-00034
| DCT9-PA66HIRHSUV-BK
|
Dettagli
- Fascette di fissaggio 1-piece
- Materiali con elevate specifiche
- Design superiore
- Adatte ad applicazioni complesse
Altri prodotti dello stesso gruppo:
Applicazione | Disegnate principalmente per l'utilizzo nell'industria dell'automotive, queste prodotti possono essere utilizzati in un'ampia varietà di applicazioni dove sono utilizzati perni o bulloni ISO, e i cavi devono essere legati e fissati (DCT9sono indicati per bulloni da 1/4"). |
Application Tool | ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
Colour | Black (BK) |

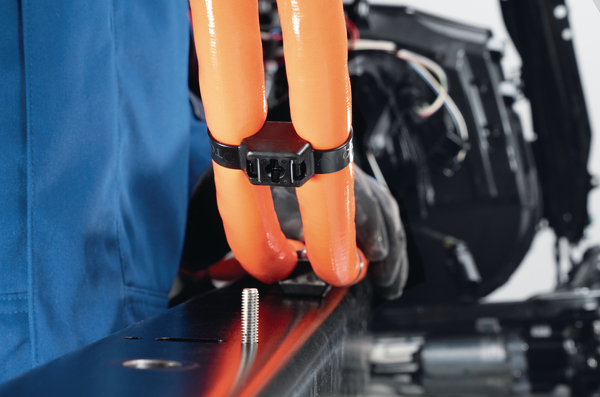

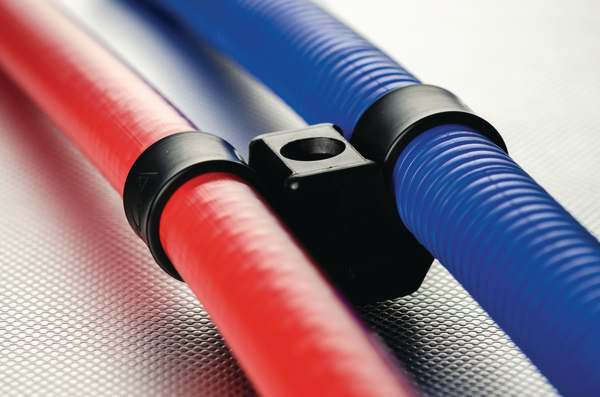

Description | Dual Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap. |
Fixation Method | Weld Stud Fixing |
Identification Plate Position | none |
Key product features | for multiple routing |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | DCT9-PA66HIRHSUV-BK |
Pack Content | 500pcs. |
Package Content packed in | bag |
Product Family | DCT9 for max. bundle diameter 33.0 mm |
Product Group | 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | DCT9 |
Variant | Inside Serrated |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
|
|
GTIN-13 / EAN | 4031026317564 |
Packaging 1 - Type | bag |
Packaging 3 - Height (m) | 0.2159m |
Packaging 3 - Length (m) | 0.606425m |
Packaging 3 - Qty | 500 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.052m³ |
Packaging 3 - Weight (kg) | 6.14kg |
Packaging 3 - Width (m) | 0.396875m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 10000 |
Packaging 4 - Type | pallet |
Packaging 4 - Weight (kg) | 136.3kg |
Packaging 4 - Width (m) | 0.8m |
