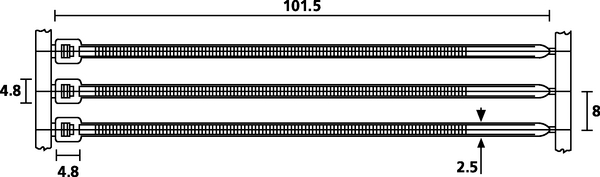

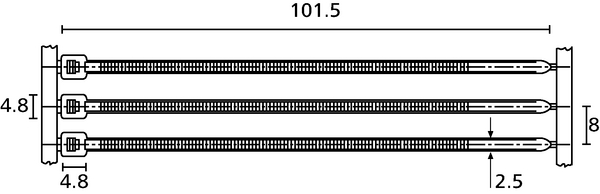

Fascetta 100x2,5 naturale AT2000 T18RA50
UNS 120-40019
| T18RA50-PA66HS-NA
|
Dettagli
- Fascette stabilizzate al calore (PA66HS) per temperature fino a + 105 °C

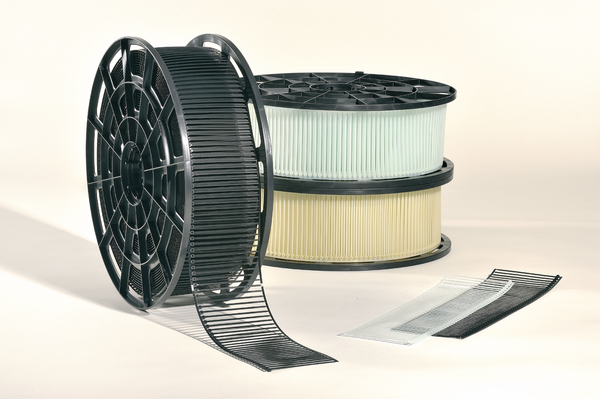

- Disponibile in bandoliere da 50 fascette o bobine da 3.500 fascette
- Tensione ripetitiva sui fasci
- Facilmente riciclabile
Altri prodotti dello stesso gruppo:
Applicazione | Realizzate per la legatura e il fissaggio di cavi, tubi e tubi flessibili. Ideale per le applicazioni di grossi volumi, ad esempio nel settore dell'assemblaggio cavi, automotive, delle attrezzature industriali e nel settore packaging. |

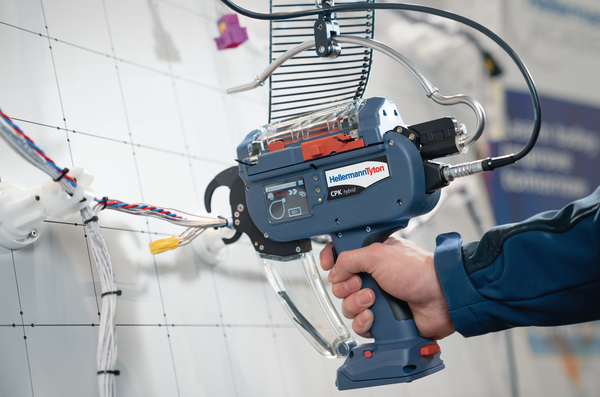

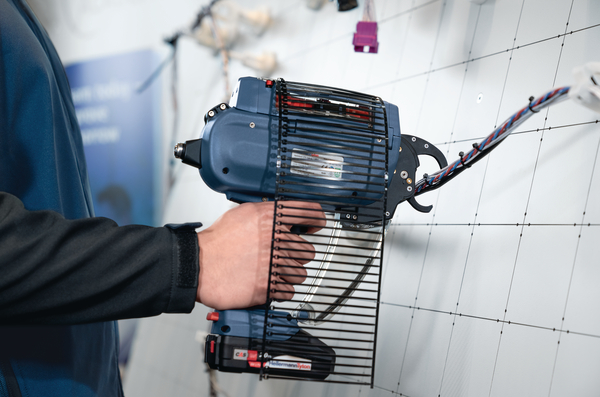

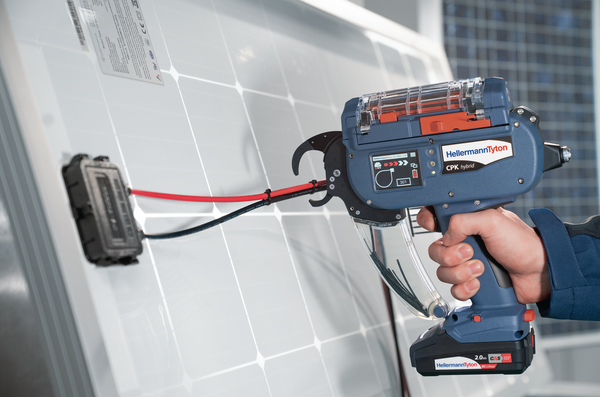

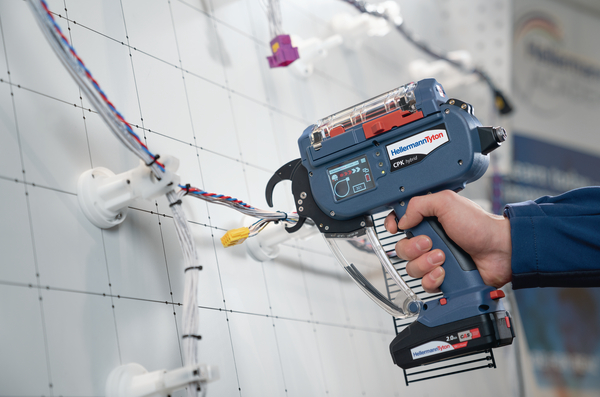

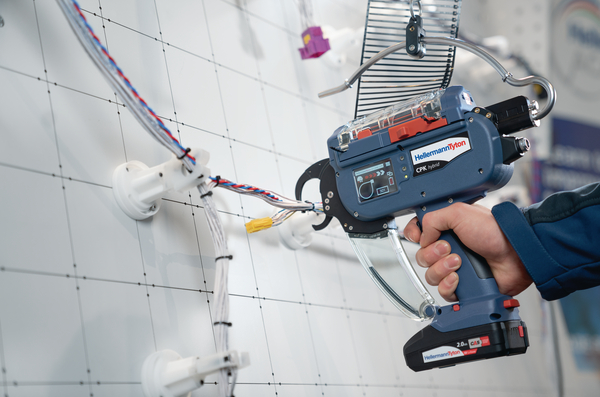

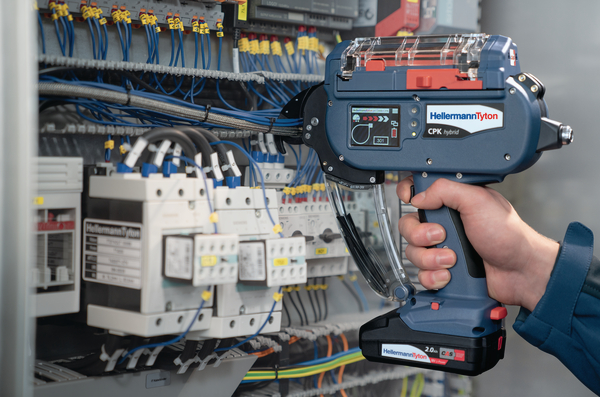

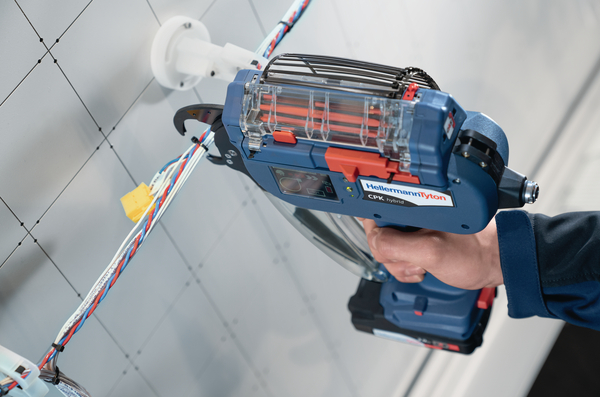

Application Tool | Autotool CPK hybrid |
Colour | Natural (NA) |

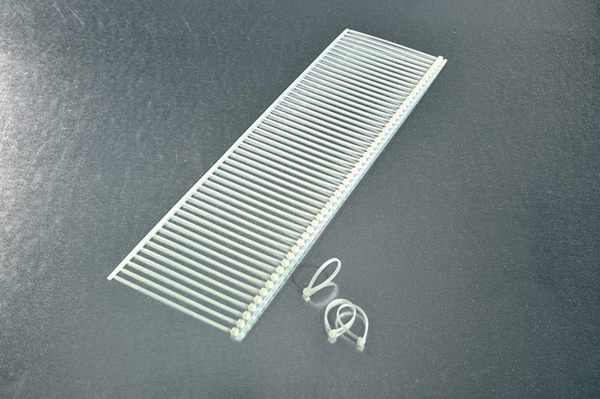

Content | Bandoleer with 50 cable ties |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
PART DESCRIPTION | T18RA50-PA66HS-NA |
Pack Content | 2000pcs. |
Package Content packed in | carton |
Product Family | Cable ties for Autotool CPK hybrid |
Product Group | Automatic bundling up to Ø 20 mm |
Tool suitable cable tie material | Plastic |
Type | T18RA50 |

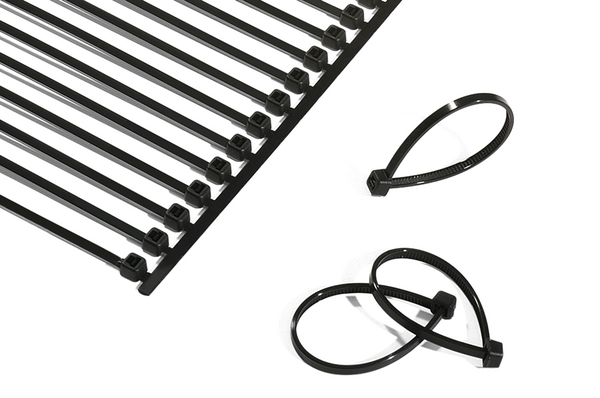

Variant | bandolier |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C, (+145 °C, 500 h) |
ROHS compliant | Yes |
Specifications | |
Specifications | ANSI/UL 62275 |
UL OCD link | Link |
UL Recognized (US and Canada) | Yes |
UL Type | 11 |
|
|
GTIN-13 / EAN | 4031026335308 |
Packaging 1 - Height (m) | 0.05m |
Packaging 1 - Length (m) | 0.41m |
Packaging 1 - Qty | 2000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00267m³ |
Packaging 1 - Weight (kg) | 0.69625kg |
Packaging 1 - Width (m) | 0.13m |
Packaging 3 - Height (m) | 0.287m |
Packaging 3 - Length (m) | 0.46m |
Packaging 3 - Qty | 20000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0433m³ |
Packaging 3 - Weight (kg) | 6.78823kg |
Packaging 3 - Width (m) | 0.328m |
Packaging 4 - Height (m) | 1.106m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 400000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.062m³ |
Packaging 4 - Weight (kg) | 156.8kg |
Packaging 4 - Width (m) | 0.8m |
