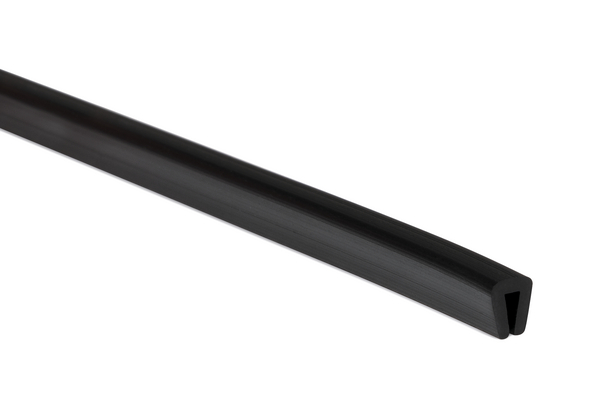

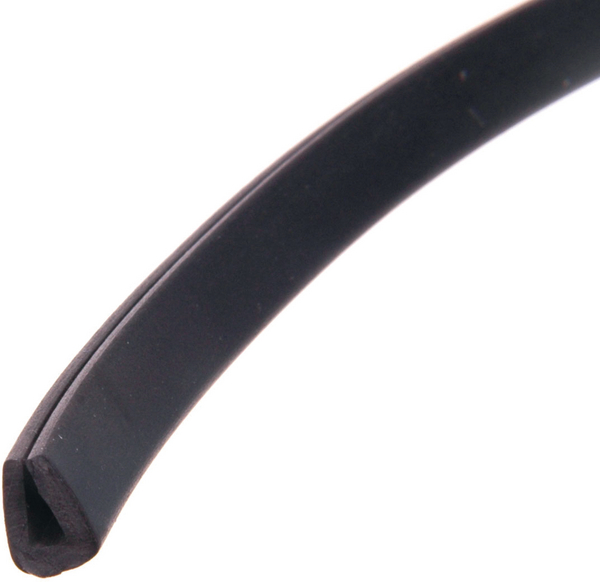

Protezione bordi PVC SM1
UNS 800-00004
| SM1-PVC-BK
|
Dettagli
- Estremamente flessibile
- Facile da applicare
- Ideale per proteggere i cavi dallo sfregamento sulle paratie
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | EdgeGuard è utilizzato per proteggere i cavi instradati in punti a contatto con bordi affilati. Utilizzabile anche per dare un aspetto gradevole alle finiture dei bordi dei pannelli. |
Colour | Black (BK) |
Material | Polyvinylchloride (PVC) |
PART DESCRIPTION | SM1-PVC-BK |
Pack Content | 75m |
Package Content packed in | reel |
Product Family | EdgeGuard |
Product Group | Edge protection |
Type | SM1 |
Height (H) | 6.3mm |
Height (H2) | 4.9mm |
Length (L) | 75m |
Panel Thickness | 0.04 - 0.08" |
Panel Thickness max. | 1.0 - 2.0mm |
Panel Thickness max. (imperial) | 0.08" |
Panel Thickness min. (imperial) | 0.04" |
Width (W) | 5.0mm |
Width (W2) | 0.039" |
Width (W2) | 1.0mm |
Width (W3) | 0.07" |
Width (W3) | 1.8mm |
Width (W4) | 4.2mm |
Width (W4) | 0.165" |
for Panel Thickness min - max | 1 - 2 mm |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Halogen-free | No |
Hazardous Goods | No |
Nato number | 5325-99-769-8268 |
Operating Temperature | -65 °C to +105 °C, intermittent +135 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
