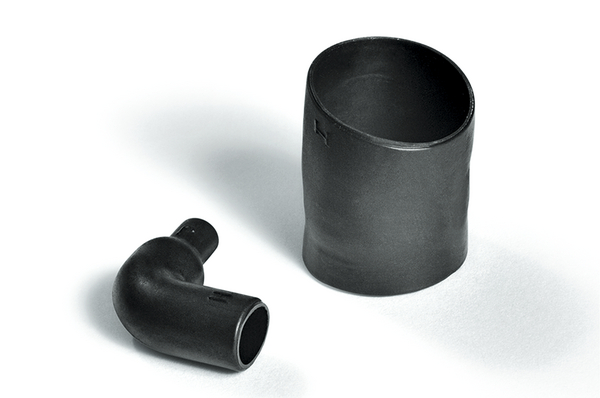

Preformato 90° 1108-1-G
UNS 411-08180 | 1108-1-G-PO-X-BK Dettagli

  • Riduce le tensioni meccaniche tra cavo e connettore
  • Si restringe con un angolo di 90 gradi

Richiedi ora la tua offerta individuale

Applicazione Preformati termorestringenti per applicazioni in cablaggi elettrici ed elettronici.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 1108-1-G-PO-X-BK
Pack Content 1pc.
Package Content packed in pcs.
Product Family Helashrink 1100 Series, without rib
Product Group Right-Angle Shapes
Shrink Ratio up to 3:1
Type 1108-1-G
Variant For plug
Angle 90
Flexibility semi rigid

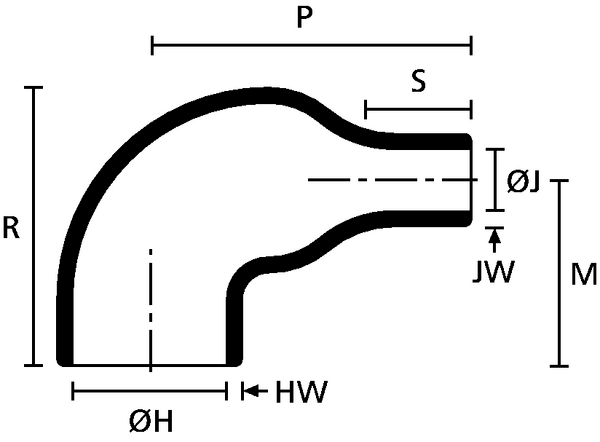

HW ± 20 % 1.0mm
JW ± 30 % 1.6mm
M nom. 15.2mm
P ± 10 % 18.3mm
R nom. 20.1mm
R ± 10 % 20.1mm
S nom. 5.1mm

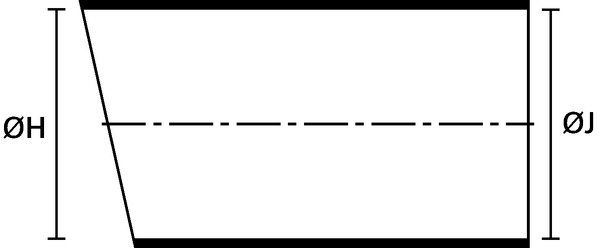

∅H max. b 7.9mm
∅H min. a 16.5mm
∅J max. b 2.5mm
∅J min. a 16.5mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-99-720-3193, 5975-99-722-2114
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Specifications
Tensile Strength 15MPa
GTIN-13 / EAN 5022660410246
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00026
Packaging 1 - Weight (kg) 0.010001kg
Packaging 1 - Width (m) 0.1m
UNSPSC Key 39121721
