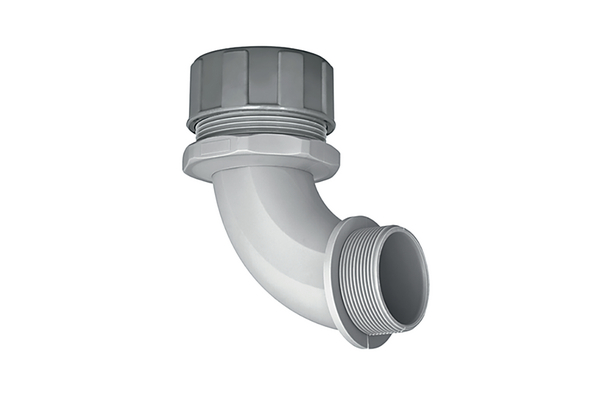

Raccordo per tubo PSR PSR16-90-M20
UNS 166-40802
| PSR16-90-M20-PA66-GY
|
Dettagli
- Elevata resistenza agli strappi
- Elevata resistenza a solventi e olii
- Zero alogeni, solfati e fosfati
- Filetti metrici con controdado
- Adatti sia alle guaine PSR che alle PSRSC
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
| Applicazione | Raccordo a 90° in PA66, con filetto maschio fisso. Grado IP65 con guaine PSR. Grado IP66 con guaine PSRSC. |
| Colour | Grey (GY) |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | PSR16-90-M20-PA66-GY |
| Pack Content | 10pcs. |
| Package Content packed in | bag |
| Product Family | PSR-90 90° elbow fitting |
| Product Group | Fittings for spiral-reinforced PVC conduits |
| Type | PSR16-90-M20 |
| Type of connection | Snap-connection |
| Variant | 90°-elbow |
Download
| CE Certification | Yes |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP65 with PSR conduits, IP66 with PSRSC conduits, IP67 with PSRSC conduits |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1696, csa-C22.2 No.227.3 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
|
|
|
| GTIN-13 / EAN | 4031026410777 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00184m³ |
| Packaging 1 - Weight (kg) | 0.174171kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
