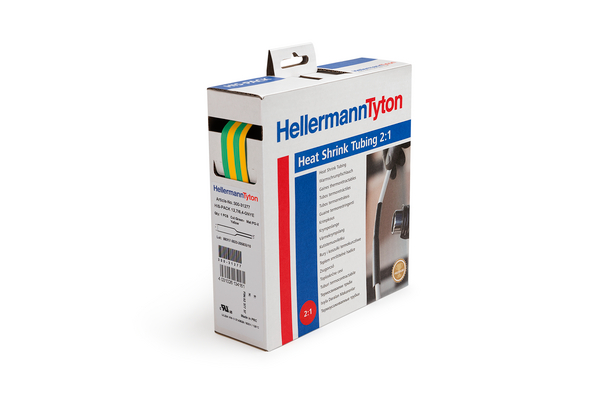

Nuovo design della scatola nel 2023. Nessuna modifica alla guaina termorestringente.
Termorestringente 2:1 MB 9,5/4,7 GNYE HIS
UNS 300-30957
| HIS-PACK-9.5/4.7-PO-X-GNYE
|
Dettagli
- Guaina in poliolefina reticolata a parete sottile e flessibile
- Pratico dispenser con una tabella che illustra i campi di applicazione
- Disponibile in nero, rosso, blu, trasparente e giallo/verde
- 10 diamteri diversi da 1,2 mm a 25,4 mm
- Il colore trasparente è zero alogeni
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | HIS-PACK viene utilizzato in una vasta gamma di applicazioni nell'isolamento elettrico garantendo una elevata protezione dalla corrosione e dall'abrasione meccanica. |
Application Tool | H6100 |
Behaviour at Heat Shock | not dripping |
Colour | Green-Yellow (GNYE) |
Heat Aging Test | 168h/175°C |
Heat Shock Test | 4h/250°C |
Internet Customer Notice | Box Design change in 2023. No change to heat shrink tubing itself. |
Material | Polyolefin, cross-linked (PO-X) |
PART DESCRIPTION | HIS-PACK-9.5/4.7-PO-X-GNYE |
Pack Content | 5m |
Package Content packed in | box |
Printable | No |
Product Family | HIS-PACK |
Product Group | Heat shrinkable tubing 2:1 on a reel |
Shrink Ratio | 2:1 |
Size | 3/8" |
Type | HIS-PACK-9.5/4.7 |
Variant | Thin-Wall |
With inner glue (Yes/No) | No |
CE Certification | No |
CSA Certified | Yes |
Dielectric Strength | 20kV/mm |
Dielectric Strength test method | IEC 243 |
ELV compliant (Article 4 - 2) | YES |
Elongation at break | 800% (IEC 684 P2) |
Flammability | UL 224 VW-1 |
Halogen-free | No |
Hazardous Goods | No |
Insulation Class | E (VDE 0530) |
Min. Shrink Temperature - °C | +100 °C |
Operating Temperature | -55 °C to +125 °C |
ROHS compliant | Yes |
Self extinguishing | Yes |
Specifications | ANSI/UL 224, csa-C22.1, csa-C22.2 No.198.1 |
Specifications | |
Tensile Strength | 17MPa |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL OCD link | Link Link |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | Yes |
UV-Stabilised | No |
Volume Resistance | 10¹⁴ Ω cm |
Water Absorption | 0.15% |
GTIN-13 / EAN | 4031026134048 |
Packaging 1 - Height (m) | 0.18m |
Packaging 1 - Length (m) | 0.165m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | carton |
Packaging 1 - Volume (m³) | 0.00163m³ |
Packaging 1 - Weight (kg) | 0.282kg |
Packaging 1 - Width (m) | 0.055m |
Packaging 3 - Height (m) | 0.4m |
Packaging 3 - Length (m) | 0.56m |
Packaging 3 - Qty | 40 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.084m³ |
Packaging 3 - Weight (kg) | 12.1kg |
Packaging 3 - Width (m) | 0.375m |
Packaging 4 - Height (m) | 0.95m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 320 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.912m³ |
Packaging 4 - Weight (kg) | 117.8kg |
Packaging 4 - Width (m) | 0.8m |
Reel Length | 16.4ft |
Reel Length | 5.0m |
