Fascetta di fissaggio per foro (tondo), a dentatura interna, Ø10.0-100.0mm, nero, 200Pz.
UNS 156-01096
| X120RDHDM6-PA66HIRHS/PA66W-BK
|
Dettagli
- Fascetta di fissaggio 2-piece preassemblata
- La testa della fascetta può essere riposizionata dopo la legatura
- Allineamento stabile con il fascio grazie allo speciale design ad H
- Una ottima alternativa alle fascette metalliche
- Resiste alle vibrazioni e alle forze laterali
- Elevata coppia di serraggio grazie alla boccola di metallo integrata
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | Utilizzate nei settori automotive, trasporto di massa e in molti altri mercati industriali che hanno situazioni ambientali difficili. |
Application Tool | ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT |
Colour | Black (BK) |

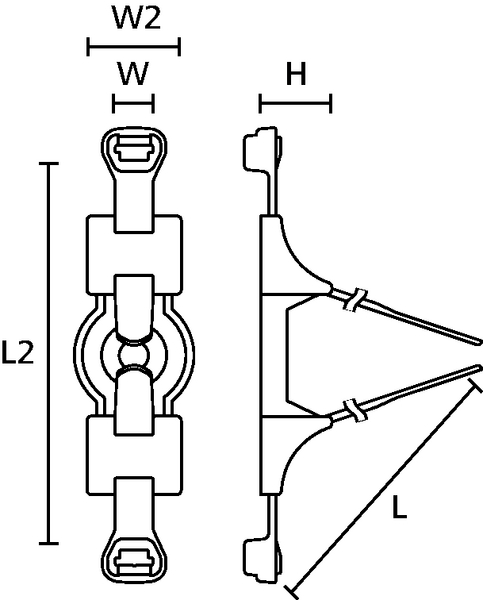

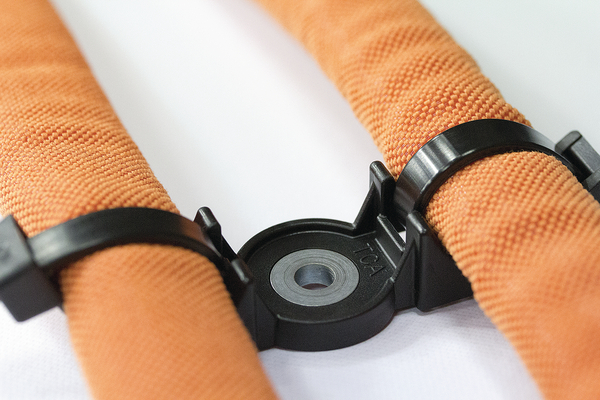

Description | 2-Piece fixing tie 369*7.7 mm, pre-assembled, high impact modified, heat stabilised, black. The mount allows the parallel routing of cable ties and it is set thanks to M6 screw. |
Fixation Method | Screw Mounting and Rivet |
Identification Plate Position | none |
Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, UV-resistant (PA66W) |
Mounting Screw Type | M6 Screw |
PART DESCRIPTION | X120RDHDM6-PA66HIRHS/PA66W-BK |
Pack Content | 200pcs. |
Package Content packed in | carton |
Product Family | DHDM-Series for parallel routing |
Product Group | 2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts |
Tie Closure | plastic pawl |
Type | X120RDHDM6 |
|
|
GTIN-13 / EAN | 4031026463414 |
Packaging 1 - Height (m) | 0.1m |
Packaging 1 - Length (m) | 0.26m |
Packaging 1 - Qty | 50 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.0104m³ |
Packaging 1 - Weight (kg) | 0.848201kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.25m |
Packaging 3 - Length (m) | 0.6m |
Packaging 3 - Qty | 200 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.06m³ |
Packaging 3 - Weight (kg) | 4.142804kg |
Packaging 3 - Width (m) | 0.4m |
Packaging 4 - Height (m) | 1.144m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 3200 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.098m³ |
Packaging 4 - Weight (kg) | 87.285kg |
Packaging 4 - Width (m) | 0.8m |
