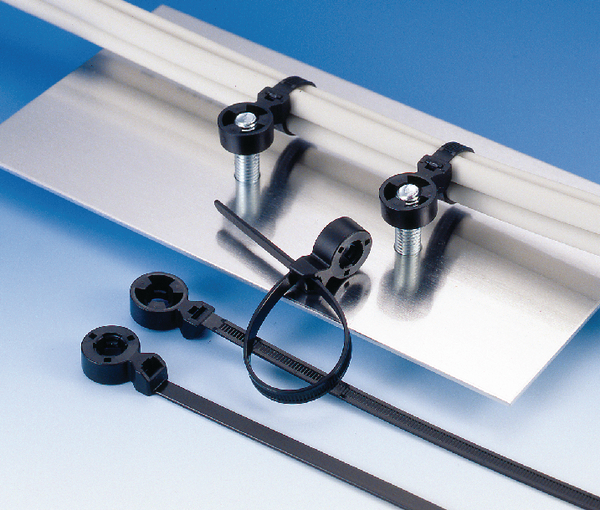

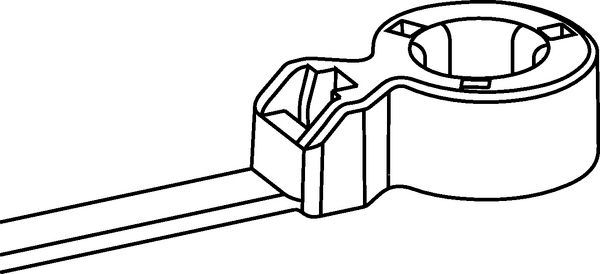

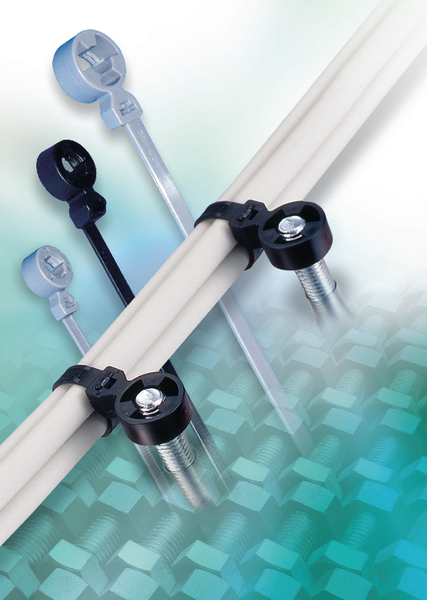

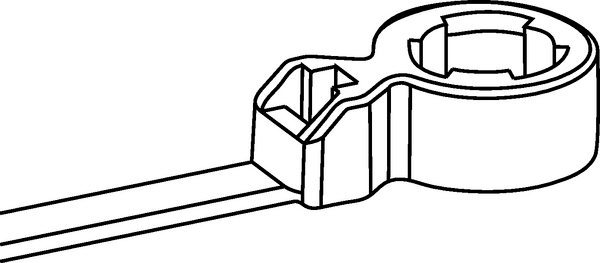

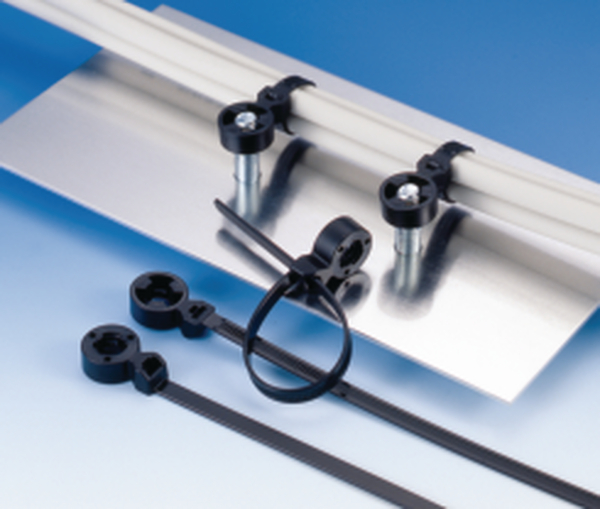

Fascetta di fissaggio per perno, a dentatura esterna, Ø3.0-30.0mm, nero, 100Pz.
UNS 157-00039
| T50SOSSBD-M8-PA66HSW-BK
|
Dettagli
- Fascette di fissaggio 1-piece
- Materiali con elevate specifiche
- Design superiore
- Adatte ad applicazioni complesse
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | Disegnate principalmente per l'utilizzo nell'industria dell'automotive, questi prodotti possono essere utilizzati in un'ampia varietà di applicazioni dove sono utilizzati perni o bulloni ISO, e i cavi devono essere legati e fissati. |
Application Tool | ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
Cable Tie | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
Colour | Black (BK) |
Fixation Method | Weld Stud Fixing |
Identification Plate Position | none |
Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
Mounting Screw Type | M8 Screw |
PART DESCRIPTION | T50SOSSBD-M8-PA66HSW-BK |
Pack Content | 100pcs. |
Package Content packed in | bag |

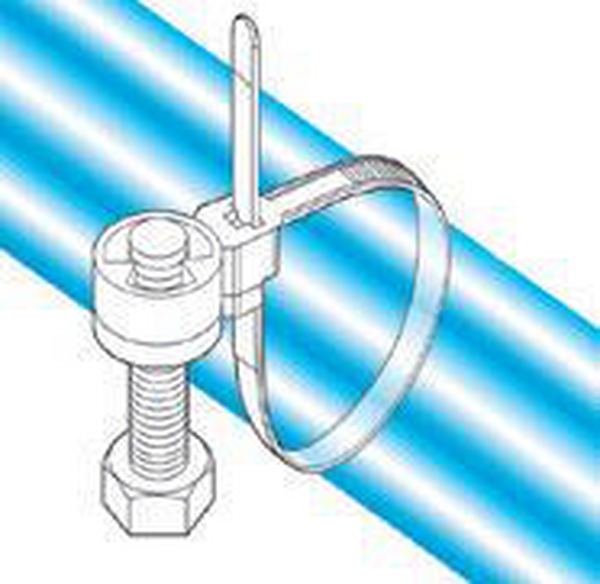

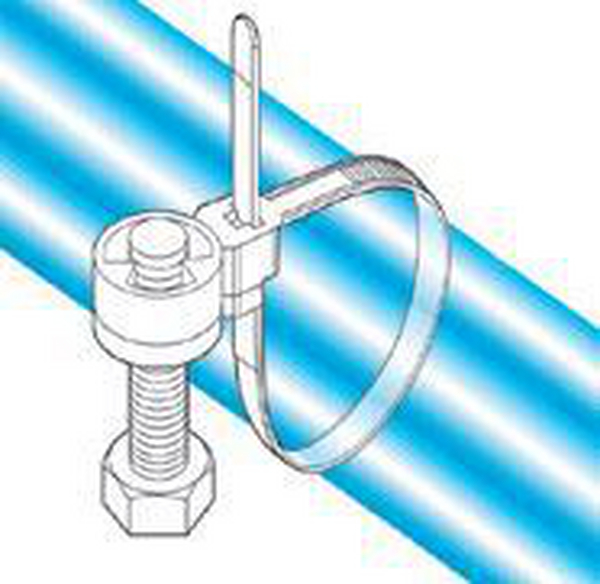

Product Family | T50SOSSBD for cable routing alongside and below the stud |
Product Group | 1-piece fixing ties for weld studs |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |

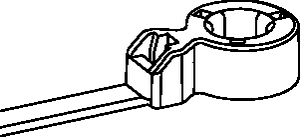

Type | T50SOSSBD-M8 |
Variant | Outside Serrated |
|
|
GTIN-13 / EAN | 4944387950885 |
Packaging 1 - Height (m) | 0.04m |
Packaging 1 - Length (m) | 0.33m |
Packaging 1 - Qty | 100 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.0029m³ |
Packaging 1 - Weight (kg) | 0.267001kg |
Packaging 1 - Width (m) | 0.22m |
Packaging 3 - Height (m) | 0.345m |
Packaging 3 - Length (m) | 0.455m |
Packaging 3 - Qty | 3000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0494m³ |
Packaging 3 - Weight (kg) | 8.45kg |
Packaging 3 - Width (m) | 0.315m |
Packaging 4 - Height (m) | 1.179m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 45000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.132m³ |
Packaging 4 - Weight (kg) | 147.75kg |
Packaging 4 - Width (m) | 0.8m |
