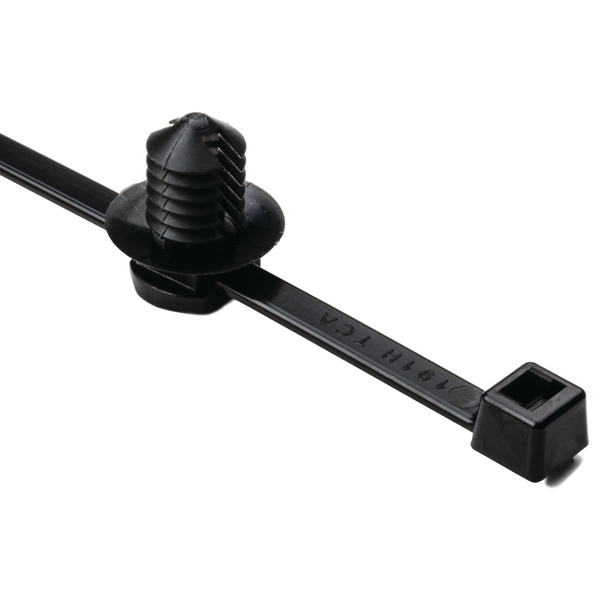

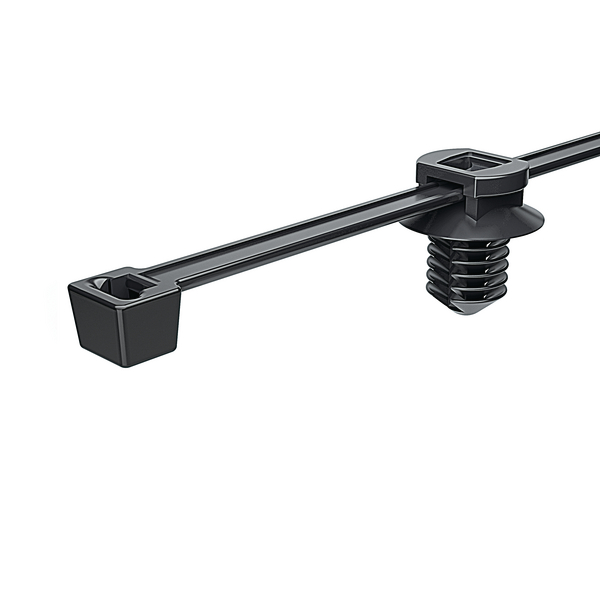

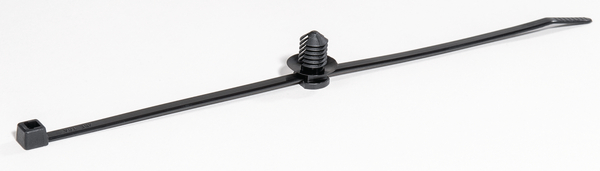

Fascetta di fissaggio per foro (tondo), a dentatura interna, Ø5.0-45.0mm, nero, 500Pz.
UNS 111-85880
| T50RFT8-PA66HS-BK
|
Dettagli

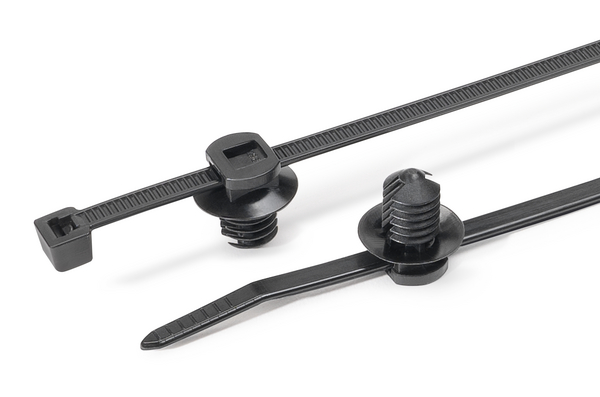

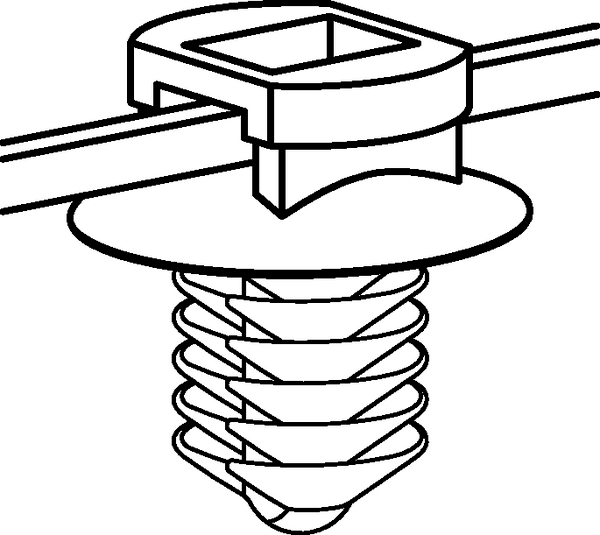

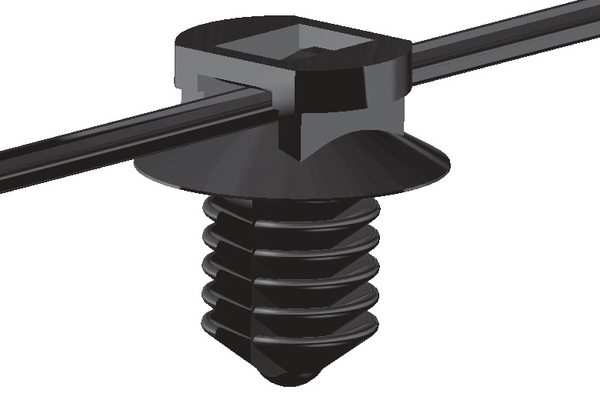

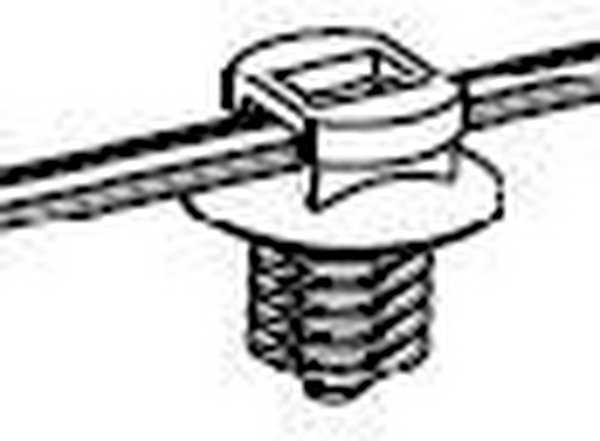

- Fascette 2-piece preassemblate con ancoraggio a pino
- La testa della fascetta può essere riposizionata dopo la legatura
- Facile da assemblare, anche senza attrezzo
- Il disco è in grado di controbilanciare le pressioni sulla fascetta e minimizza l'ingresso di polvere, sporco e acqua
- L'ancoraggio a pino può essere utilizzato con pannelli di diversi spessori
- Adatte ai fori filettati
Altri prodotti dello stesso gruppo:
Applicazione | Disegnate inizialmente per il fissaggio di cavi nei cablaggi del settore automotive, la semplicità e la facilità di utilizzo, hanno reso queste fascette utilizzabili ovunque: dagli aerei, alle lavatrici e agli elettrodomestici in genere. |
Anti rotation (Yes / No) | NO |
Application Tool | ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK) |
Fixation Method | Fir Tree |
Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
No. of sides for tie attachment | 2 |
PART DESCRIPTION | T50RFT8-PA66HS-BK |
Pack Content | 500pcs. |
Package Content packed in | bag |
Product Family | Fir tree parts FT8 |
Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50RFT8 |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 45.0mm |
Bundle ∅ min. | 5.0mm |
Disc ∅ | 16.0mm |
Fixing Hole Shape | Circular |
Height (H) | 1.2mm |
Height (H2) | 11.5mm |
Length (L) | 202mm |
Length (L2) | 12.0mm |
Length of Fir Tree | 11.5mm |
Min.Tensile Strength | 225N |
Thickness (T) | 1.2mm |
Width (W) | 4.6mm |
Width (W2) | 9.0mm |
for Hole ∅ (FH) | 7.7 - 8.0 mm |
for Panel Thickness min - max | 0.8 - 6 mm |
|
|
GTIN-13 / EAN | 4031026205526 |
Packaging 1 - Height (m) | 0.1m |
Packaging 1 - Length (m) | 0.45m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.01778m³ |
Packaging 1 - Weight (kg) | 1.048135kg |
Packaging 1 - Width (m) | 0.395m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 4000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 9.56508kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.249m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 48000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.199m³ |
Packaging 4 - Weight (kg) | 135.768kg |
Packaging 4 - Width (m) | 0.8m |
