Clip a nastrare per foro (tondo), L=55.0mm, nero, 14000Pz.
UNS 155-30802
| TC2FT6LG-PA66HIRHS-BK
|
Dettagli
Richiedi ora la tua offerta individuale
Richiedi un preventivo

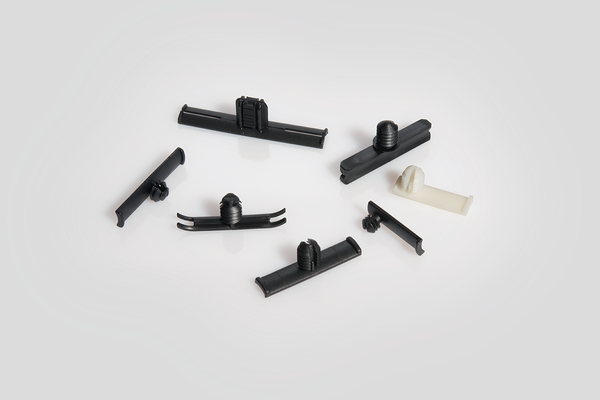

Altri prodotti dello stesso gruppo:
Applicazione | Questo sistema semplice e veloce per il fissaggio dei cavi, ha un impiego diffuso nell'assemblaggio dei cablaggi, in particolare nel settore automotive. |
Anti rotation (Yes / No) | NO |
Colour | Black (BK) |
Fixation Method | Fir Tree |
Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | TC2FT6LG-PA66HIRHS-BK |
Pack Content | 14000pcs. |
Package Content packed in | bag |
Product Family | TC2FT6LG |
Product Group | Bundling Clips with Fir Tree |
Type | TC2FT6LG |
Wings on clip base (Yes / No) | YES |
Bundling Bar Length | 2.17" |
Bundling Bar Length | 55.0mm |
Fixing Hole Shape | Circular |

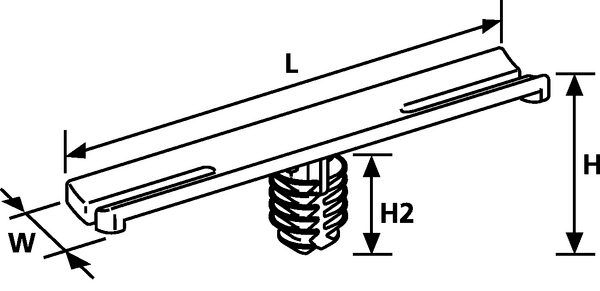

Height (H) | 12.5mm |
Height (H2) | 11.0mm |
Length (L) | 55.0mm |
Length of Fir Tree | 11.0mm |
Panel Thickness | 0.02 - 0.20" |
Panel Thickness max. | 0.6 - 5.1mm |
Panel Thickness max. (imperial) | 0.20" |
Panel Thickness min. (imperial) | 0.02" |
Width (W) | 9.0mm |
for Hole ∅ (FH) | 6.3 - 7.0 mm |
for Panel Thickness min - max | 0.6 - 5.1 mm |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026217536 |
Packaging 1 - Qty | 14000 |
Packaging 1 - Type | bag |
Packaging 1 - Weight (kg) | 13.870663kg |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 14000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 14.690663kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.249m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 168000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.199m³ |
Packaging 4 - Weight (kg) | 197.292kg |
Packaging 4 - Width (m) | 0.8m |
