Clip per cavi, T=1.0 - 6.0mm, Ø6.4 - 6.8 mm, Dmax=15.7mm, nero, 1000Pz.
UNS 151-14303
| PC15FT7-PA66HIRHSUV-BK
|
Dettagli
- Per il fissaggio di tubi e guaine corrugate
- Ideali per qualsiasi applicazione
Richiedi ora la tua offerta individuale
Richiedi un preventivo

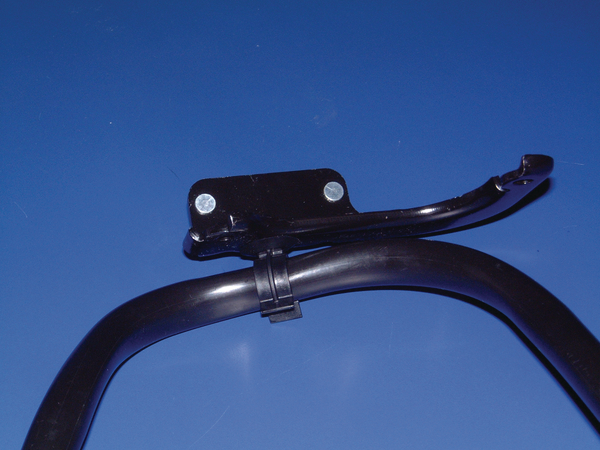

| Applicazione | Queste clip offrono un fissaggio sicuro per tubi e guaine corrugate, specialmente per l'industria automotive. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | PC15FT7-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | bag |
| Product Family | PC-Series with Firtree |
| Type | PC15FT7 |
|
|
| Bundle Diameter max (metric) | 15.7mm |
| Disc ∅ | 0.9" |
| Disc ∅ | 21.6mm |
| Height (H) | 38.1mm |
| Height (H2) | 26.7mm |
| Length (L) | 15.75mm |
| Panel Thickness | 0.04 - 0.31" |
| Panel Thickness max. | 1.0 - 6.0mm |
| Panel Thickness max. (imperial) | 0.31" |
| Panel Thickness min. (imperial) | 0.04" |
| Width (W) | 21.6mm |
| for Hole ∅ (FH) | 6.4 - 6.8 mm |
| for Panel Thickness min - max | 1 - 6 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026312408 |
| Packaging 3 - Height (m) | 0.1508125m |
| Packaging 3 - Length (m) | 0.4365625m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 2.64kg |
| Packaging 3 - Width (m) | 0.2667m |
| Packaging 4 - Height (m) | 1.27m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.219m³ |
| Packaging 4 - Weight (kg) | 91.2kg |
| Packaging 4 - Width (m) | 0.8m |
